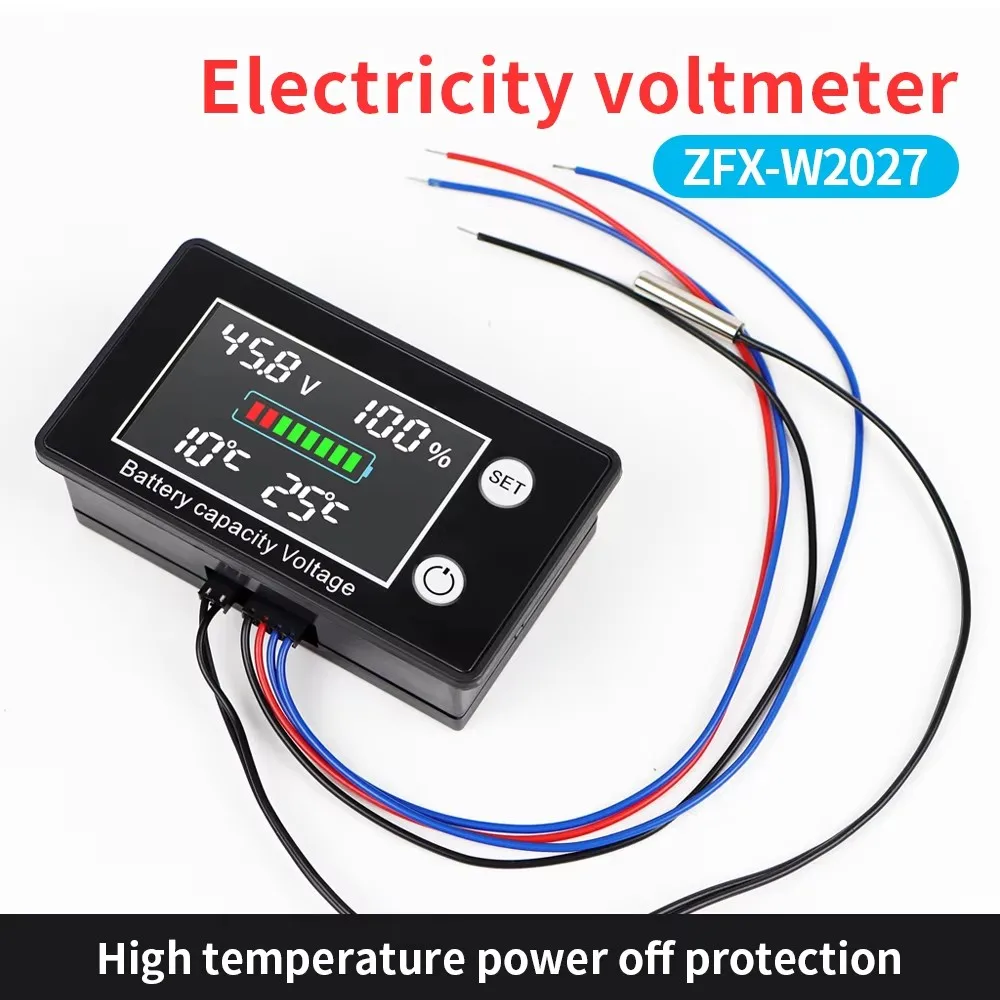

Lead-acid Lithium LiFe PO4 Voltage Gauge Battery Meter DC10V-100V Voltmeter
399.00 NOK
Product overview Lead-acid Lithium LiFe PO4 Voltage Gauge Battery Meter DC10V-100V Voltmeter Battery Capacity Indicator with Temperature Control Key featur...
Product overview
Lead-acid Lithium LiFe PO4 Voltage Gauge Battery Meter DC10V-100V Voltmeter Battery Capacity Indicator with Temperature Control
Key features

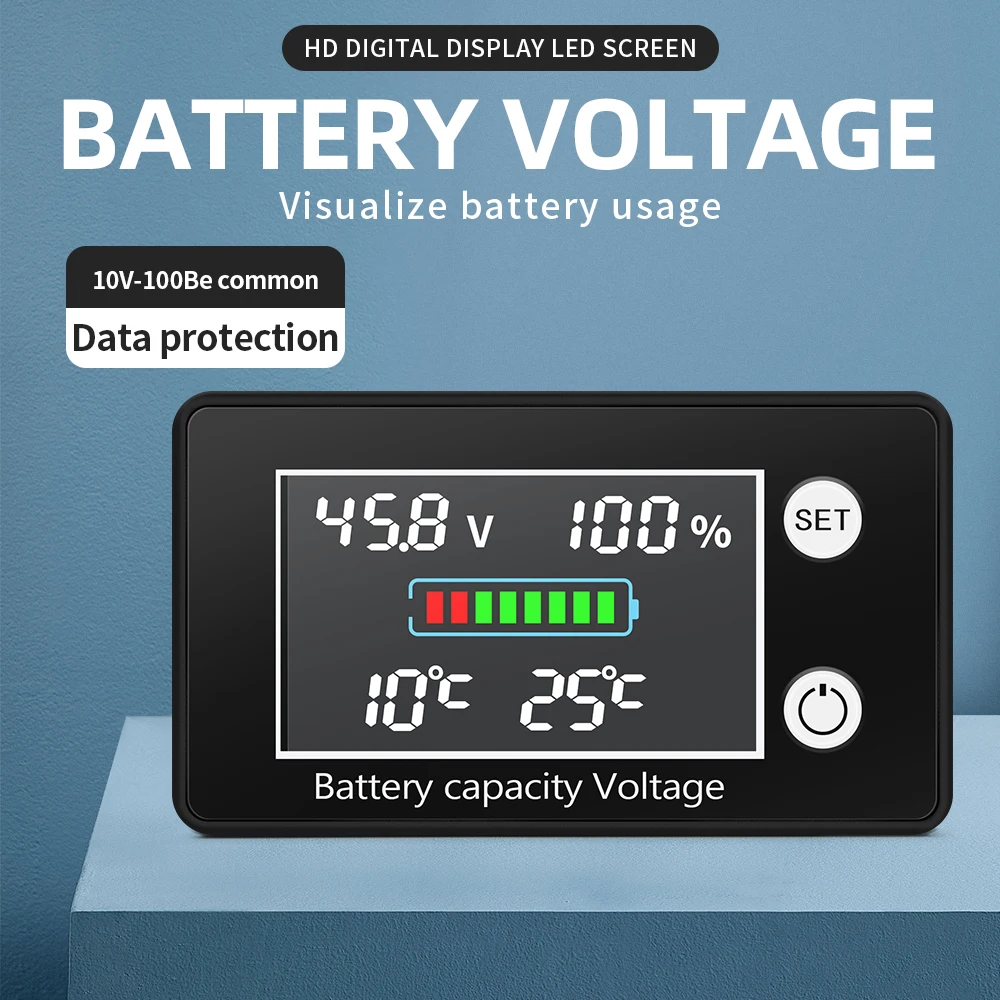

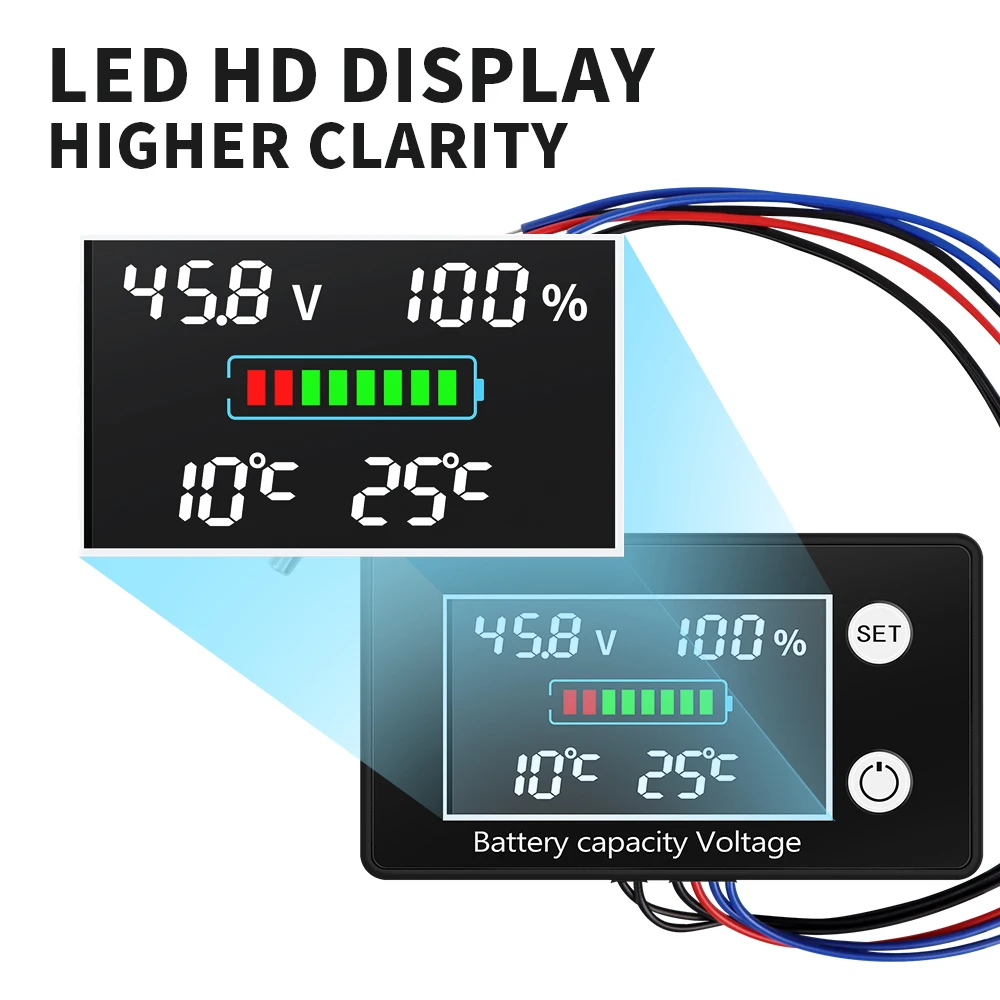

- HD digital display LED screen

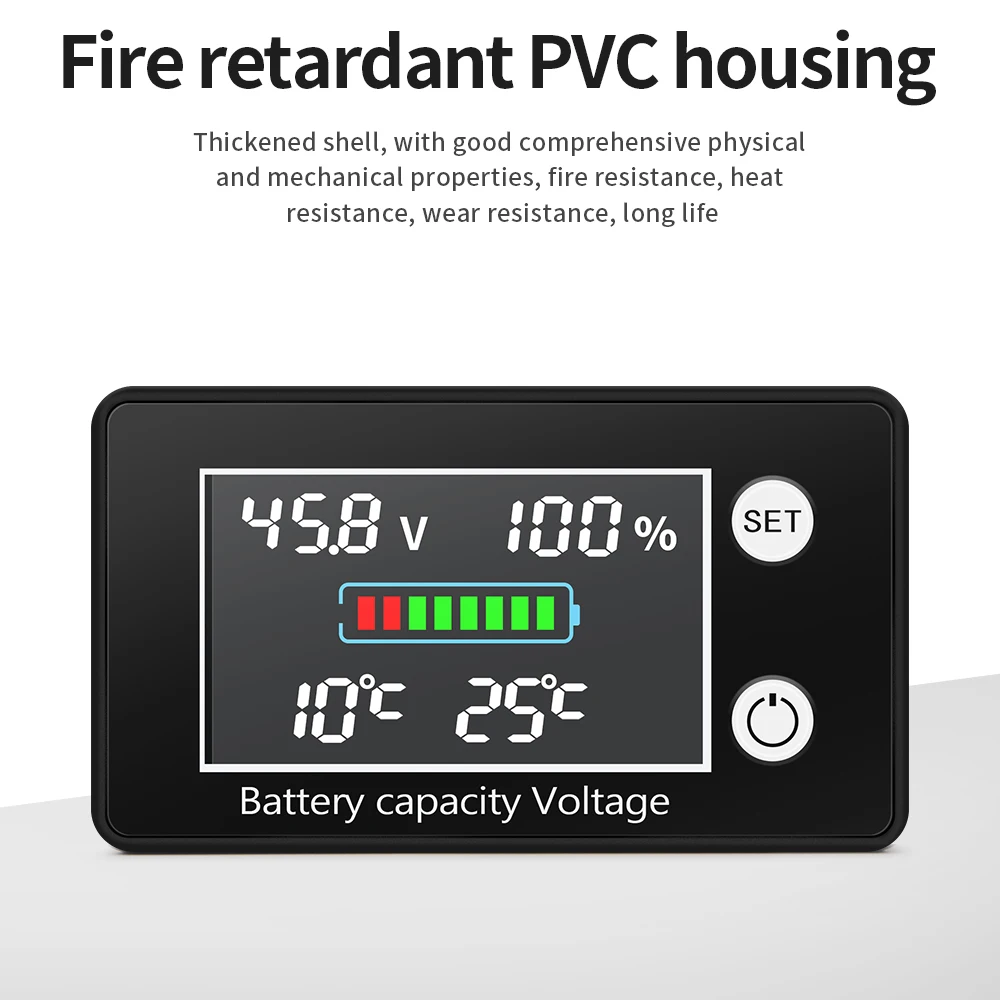

- With thickened shell, it has a long service life of heat resistance and wear resistance
- Multiple sensor combinations

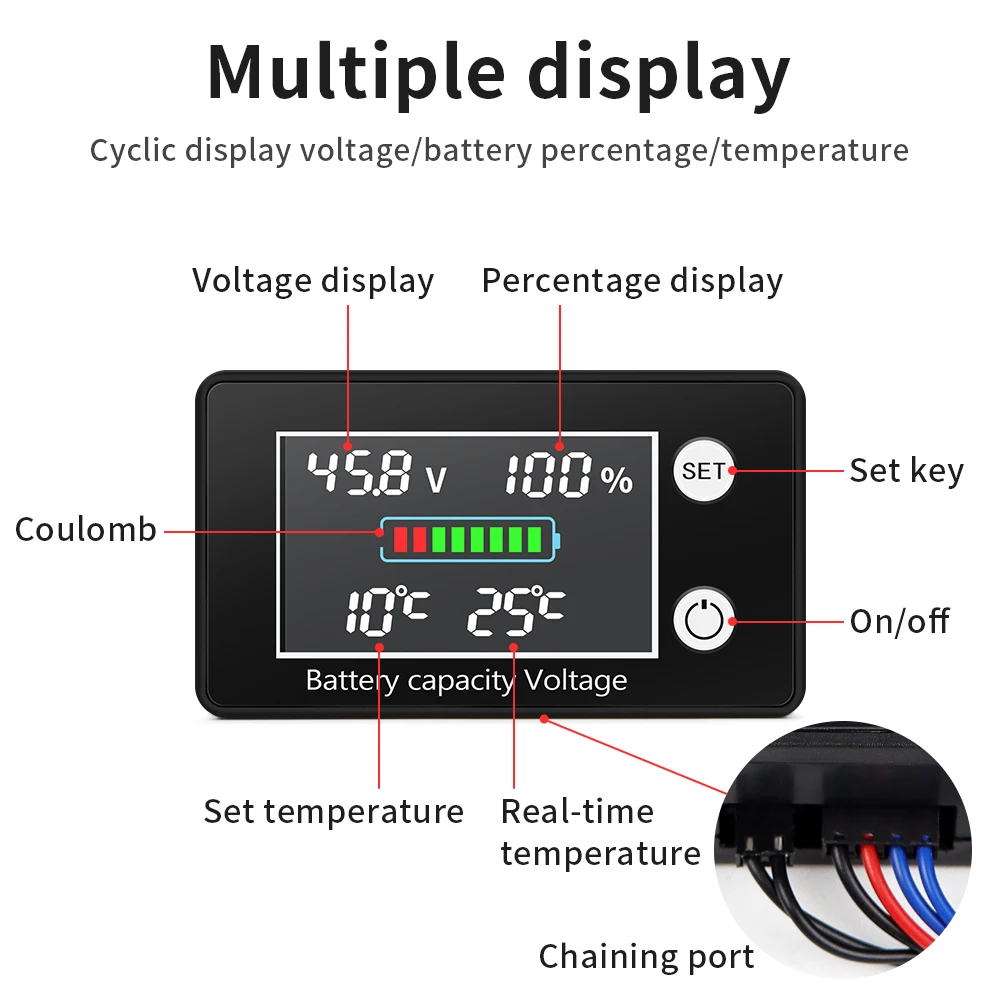

- One screen multiple display: cycle display voltage/battery percentage/temperature

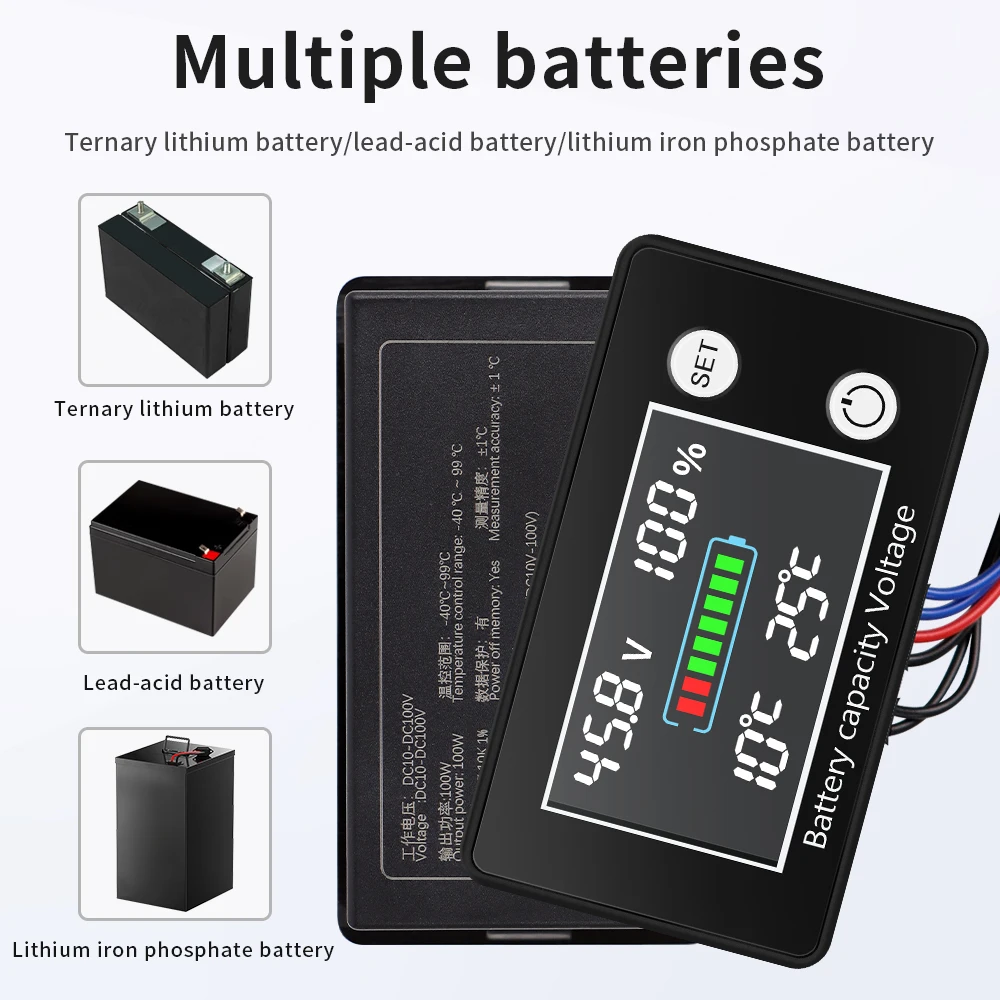

- Applicable to a variety of batteries: lithium ternary battery/lead-acid battery/lithium iron phosphate battery

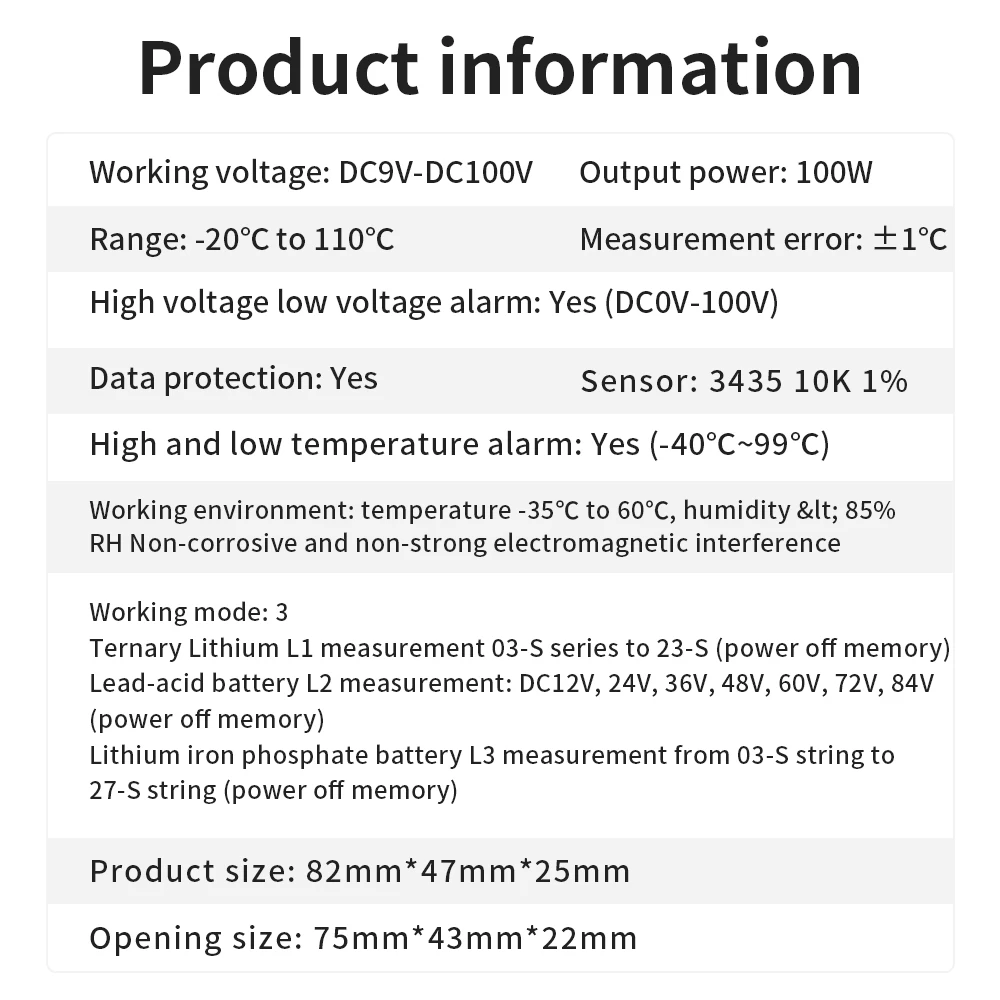

Specifications
| Attribute | Value |
|---|---|
| Working voltage | DC10-100V |

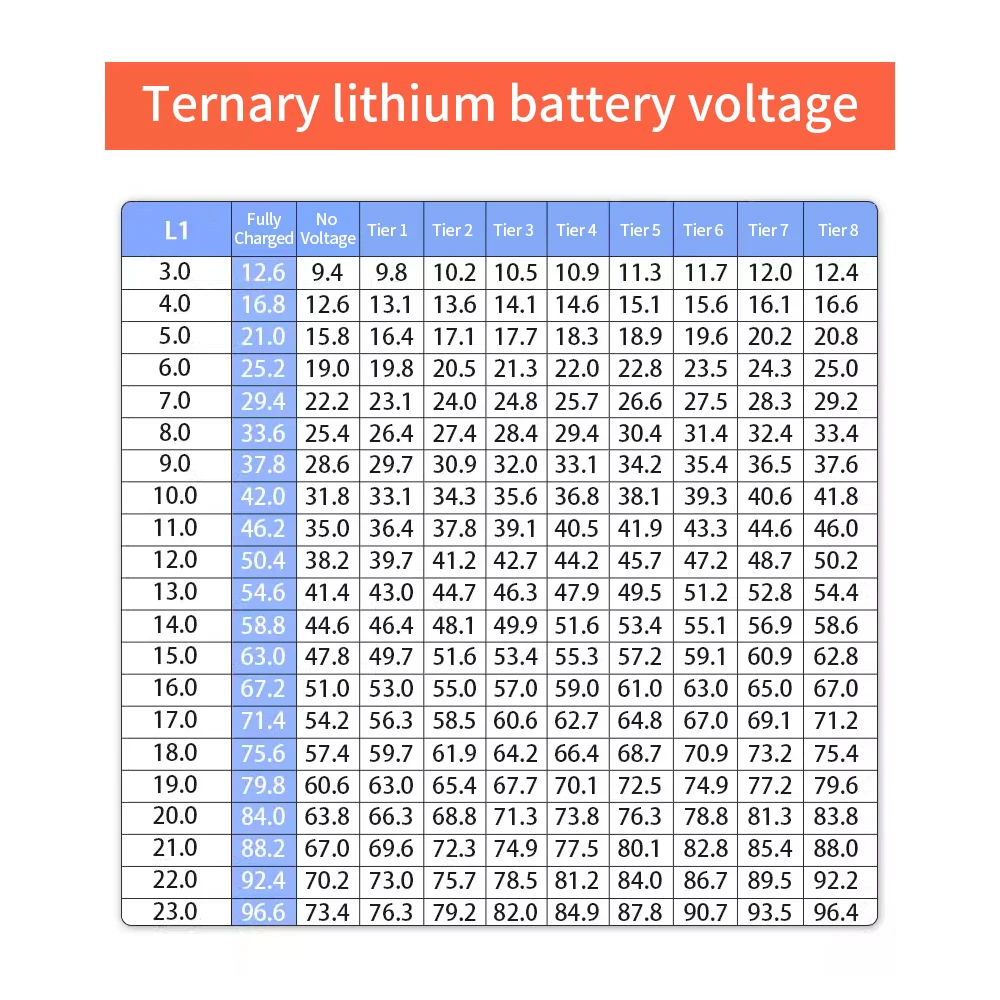

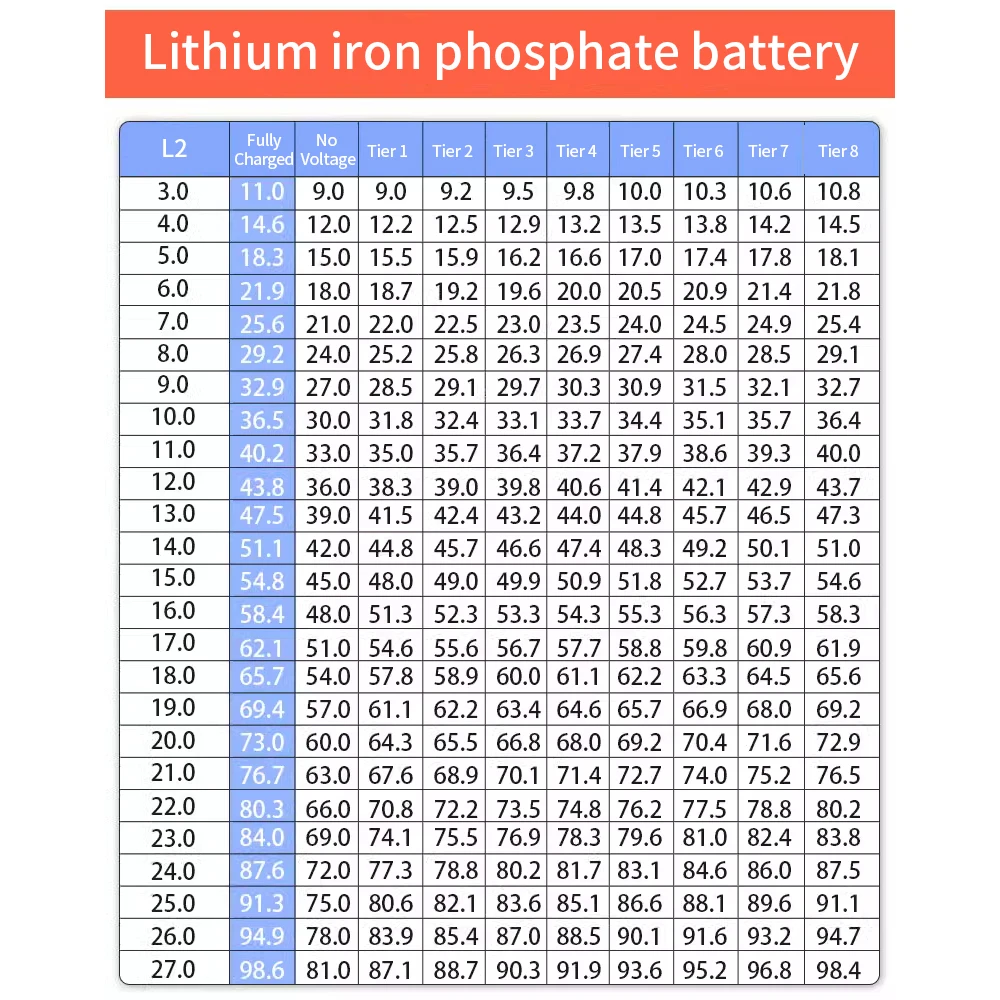

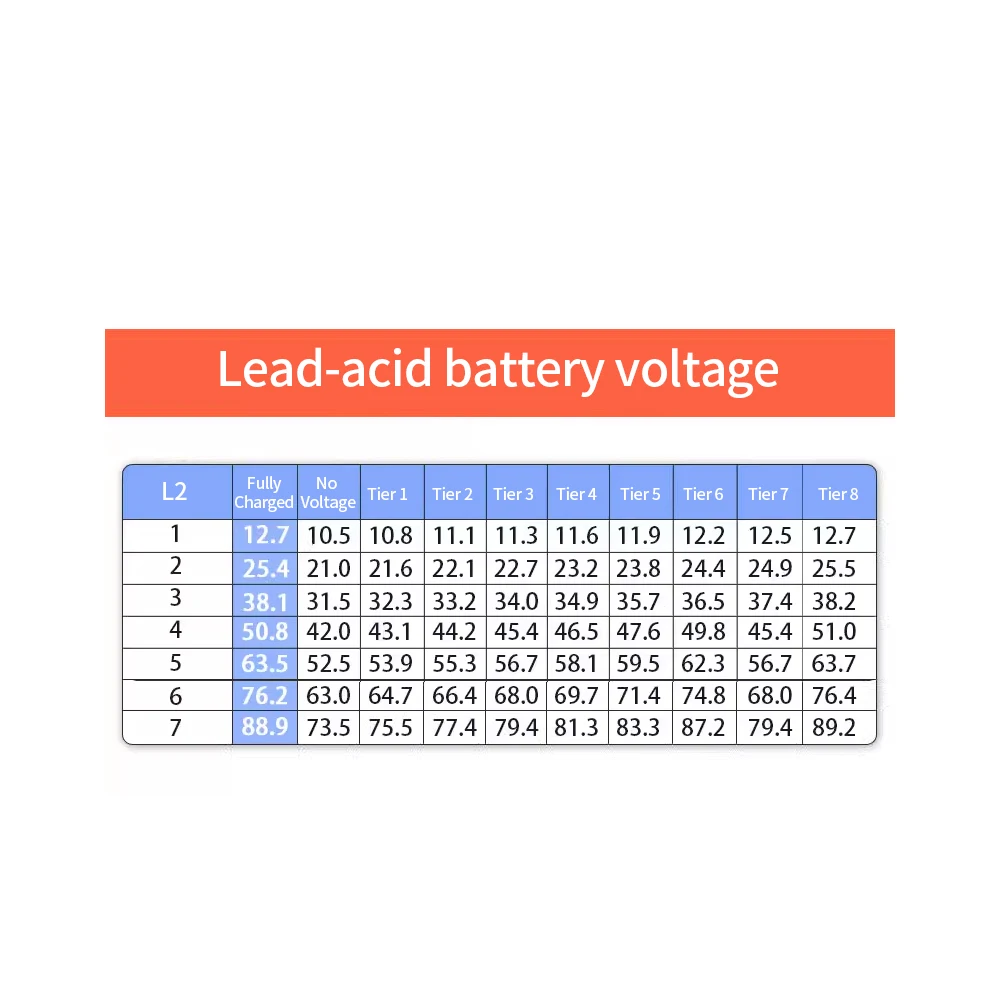

| Working mode | Three kinds, ternary lithium battery L1 measures 03-S to 23-S strings (power-off memory), lead-acid battery L2 measures: DC12V, 24V, 36V, 48V, 60V, 72V, 84V (power-off memory), The measurement of lithium iron phosphate battery L3 ranges from 03-S to 27-S (power-off memory) |
| Maximum output power | 100W |
| Sensor | 3435 10K 1% |
| Data protection | Yes |
| High pressure and low pressure alarm | Yes (DC0V-100V) |

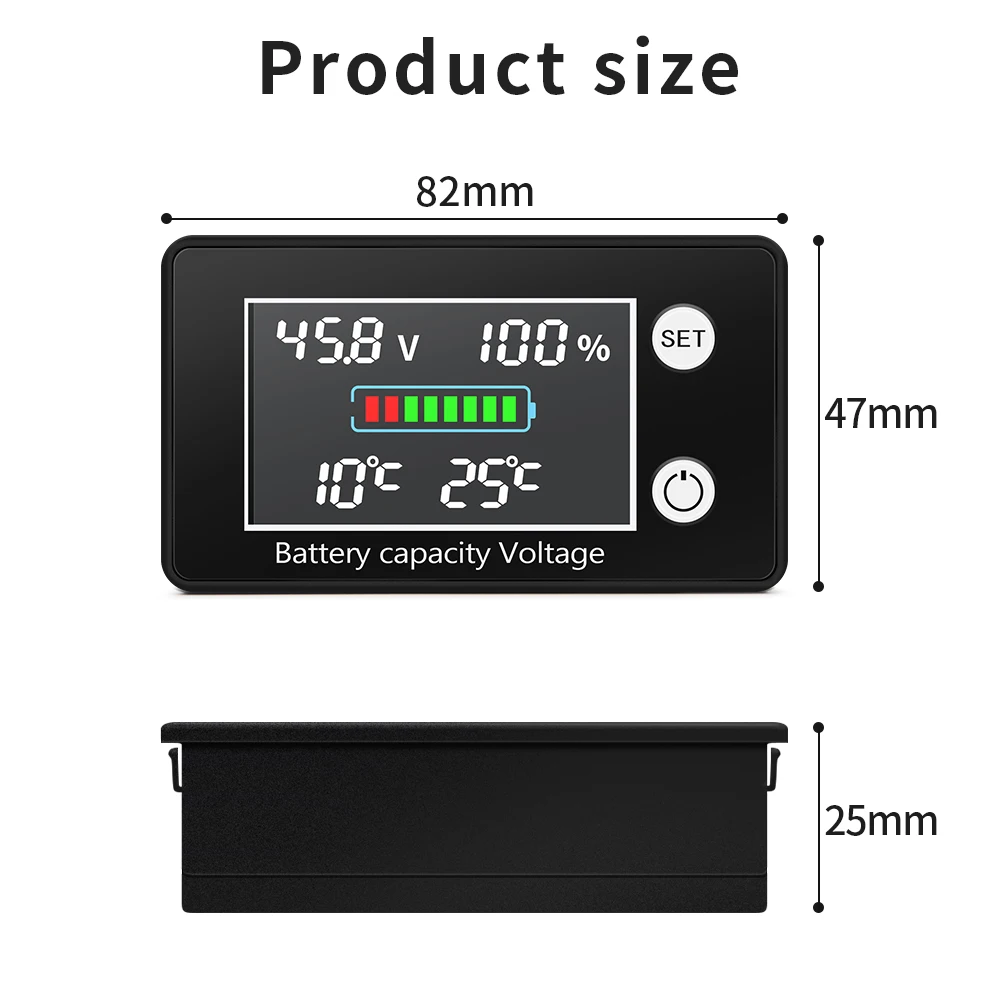

| Opening size | 75mm * 43mm * 22mm |
Package includes
- 1x Voltmeter
- 1x Sensing line
Notes
Images are for illustration purposes. Please check the specifications before ordering.
