HW-300 Coating Thickness Gauge 0-2000UM Car
499.00 NOK
Product overview The thickness gauge is used to measure the thickness of the plated and coated sheet on metal. Key features Measuring range is 0-2000UM. Ta...
Product overview
The thickness gauge is used to measure the thickness of the plated and coated sheet on metal.
Key features
- Measuring range is 0-2000UM.
- Takes the precision integrated probe.
- Uses principles of electro-magnetic induction and the eddy current effect.
- Designed for non-destructively measuring the thickness of coating and painting.
Specifications
| Attribute | Value |
|---|---|
| Product name | HW-300 coating thickness gauge |

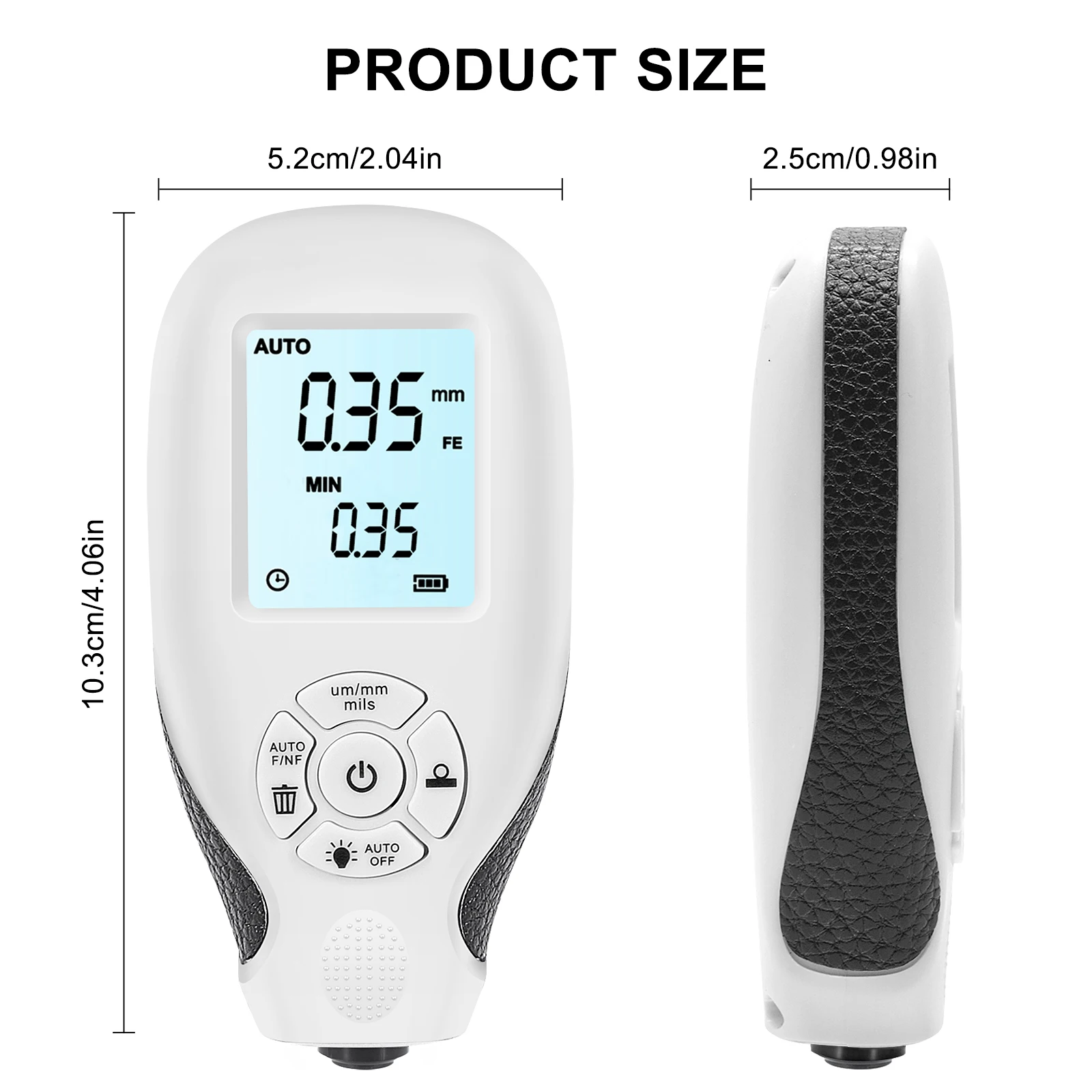

| Product size | 110MM*52MM*25MM |
| Material | ABS |
| Resolution | 0.01mm/1mil |
| Measuring range | 0-2000UM |
| Measurement accuracy | ±(3%+1UM) |
| Power supply | 2 1.5V AAA batteries (not included) |
| Operating temperature | -10 ℃- 50 ℃ |
Package includes
- Thickness gauge
- Manual
- Calibration sheet
Notes
Images are for illustration purposes. Please check the specifications before ordering.
