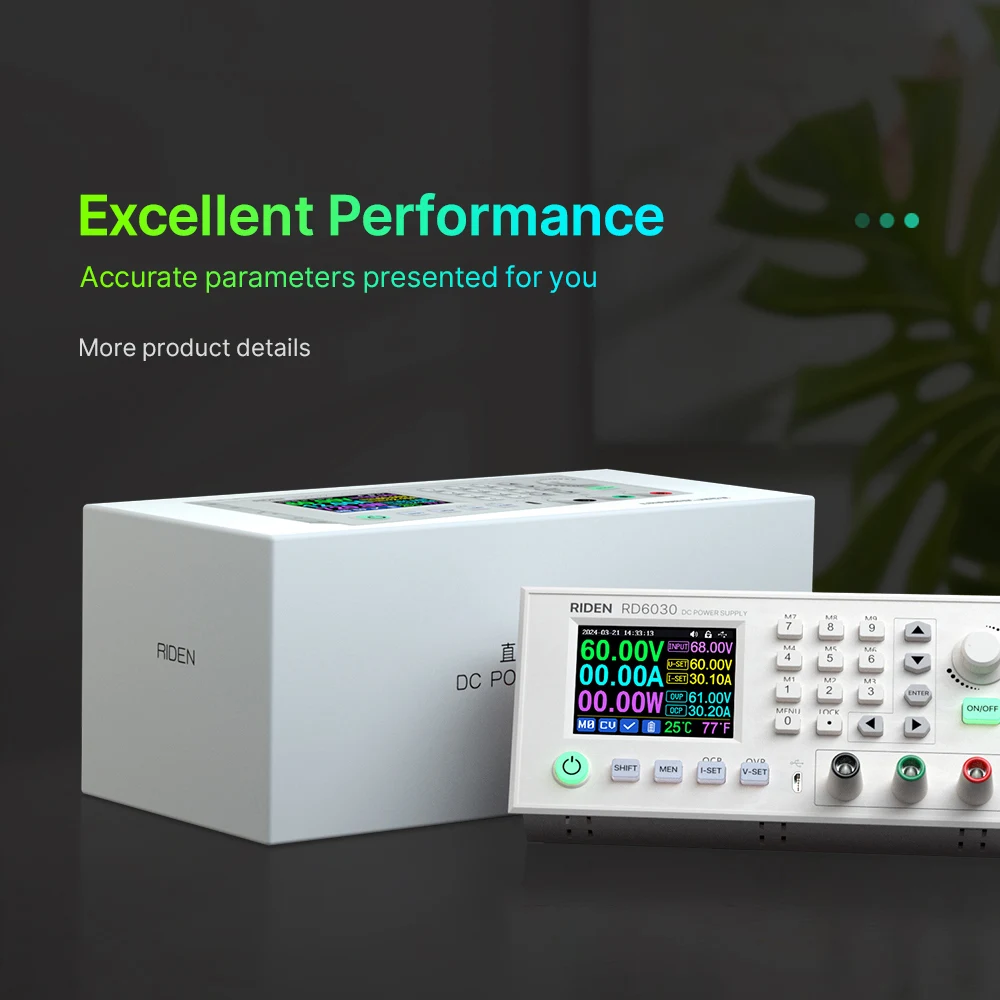

RD6030-W 60V 30A DC DC Step-down Stabilized Lab Power Supply Module

Product overview

RD6030-W 60V 30A DC DC Voltage Current Step-down Stabilized Lab Power Supply Module Buck Adjustable Converter Battery Charge

Key features

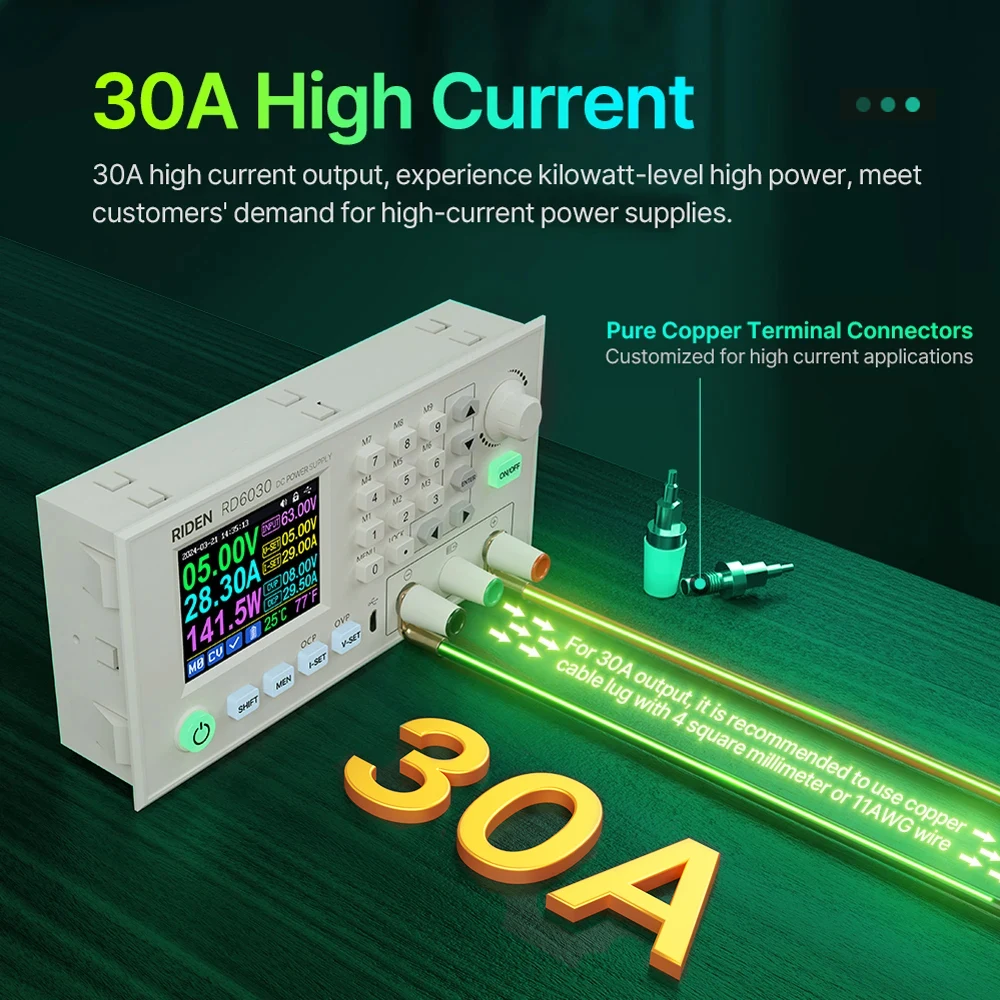

• High Output Capability
• High-precise Measurement & Convenient Calibration

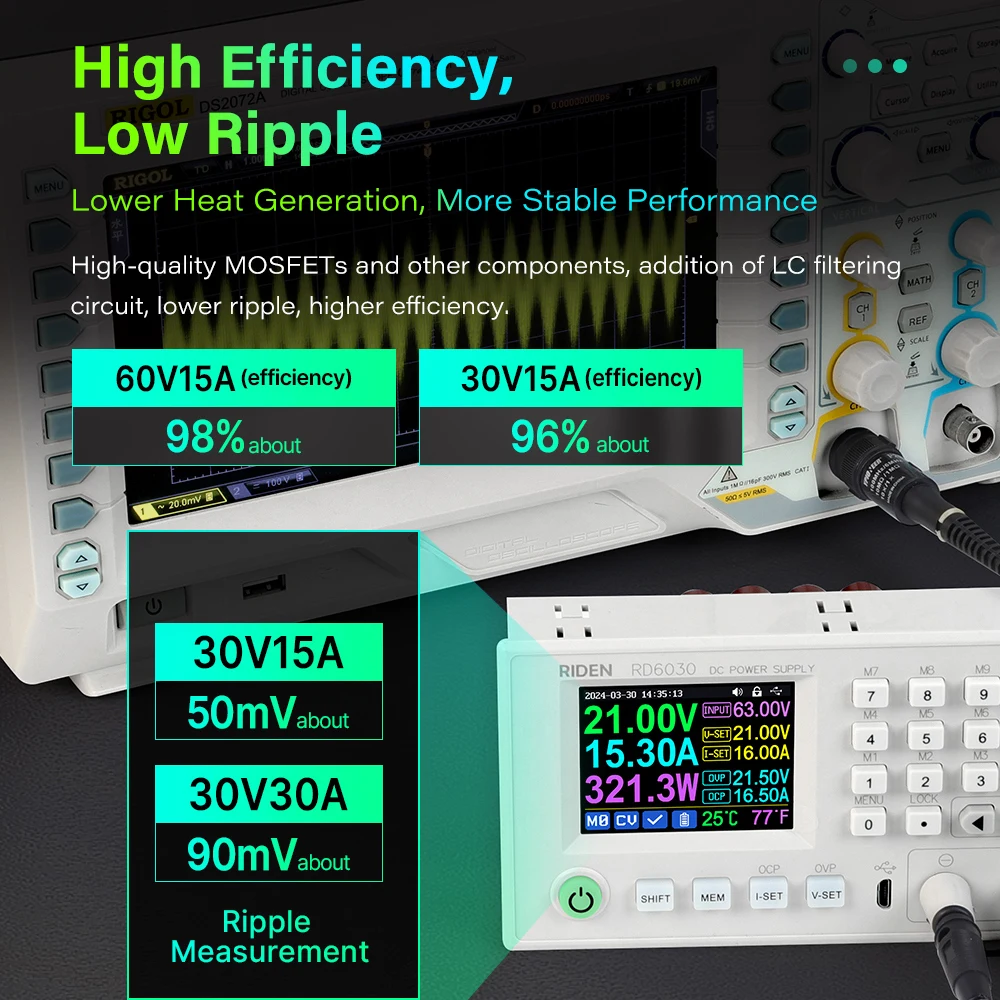

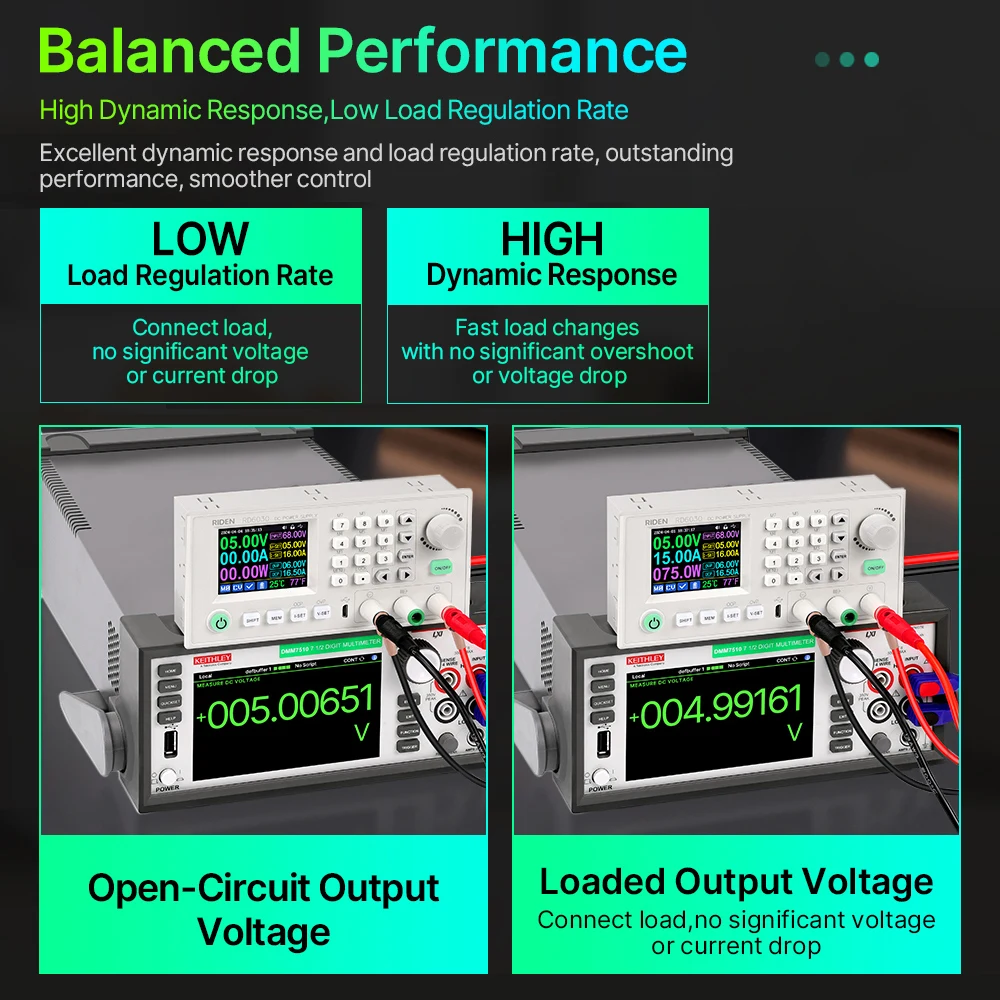

• High Efficiency & Superior Dynamic Response

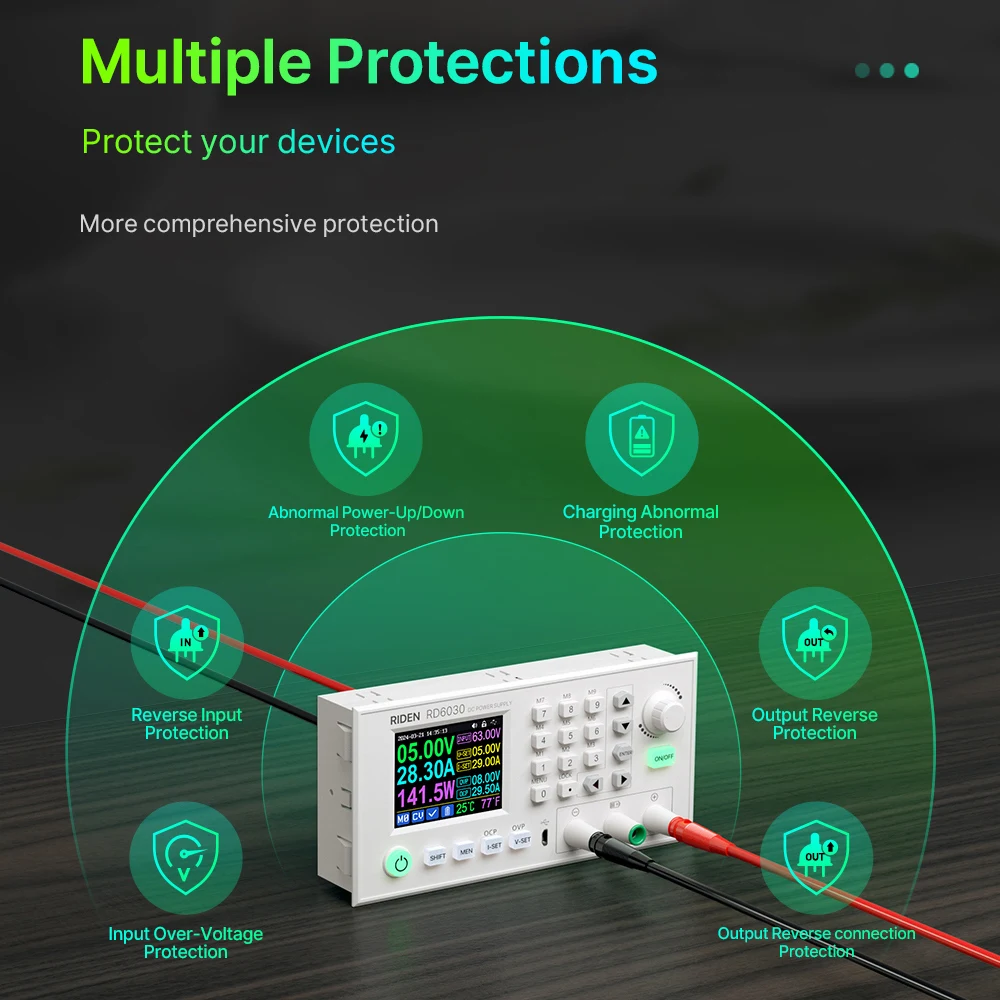

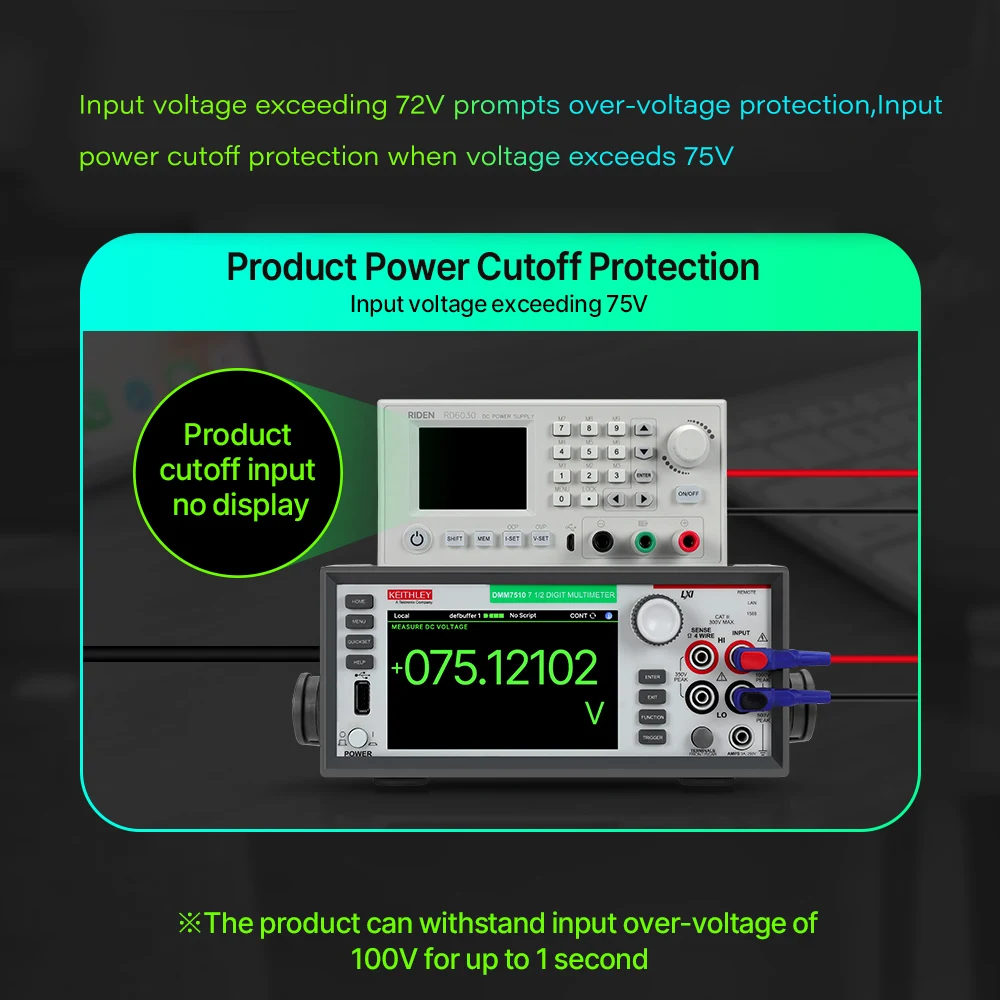

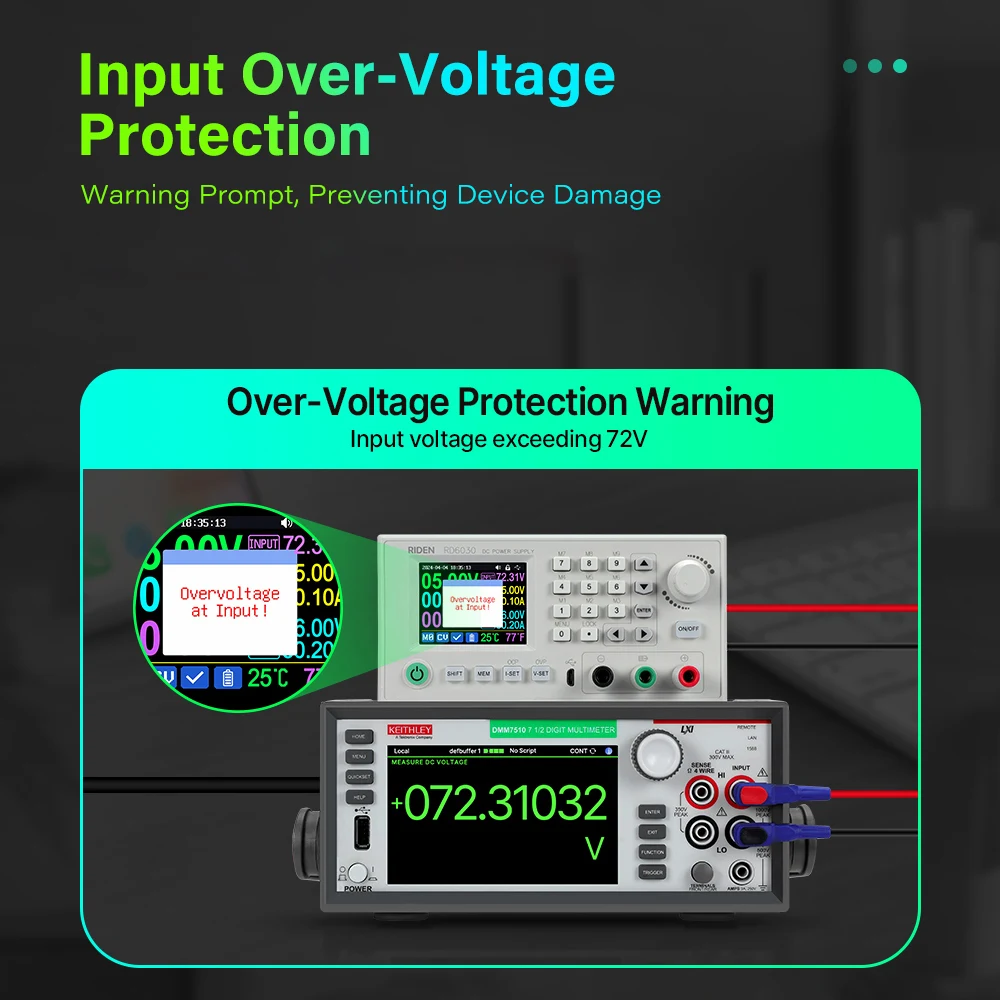

• Comprehensive Protections Mechanism
• Personalized Customization

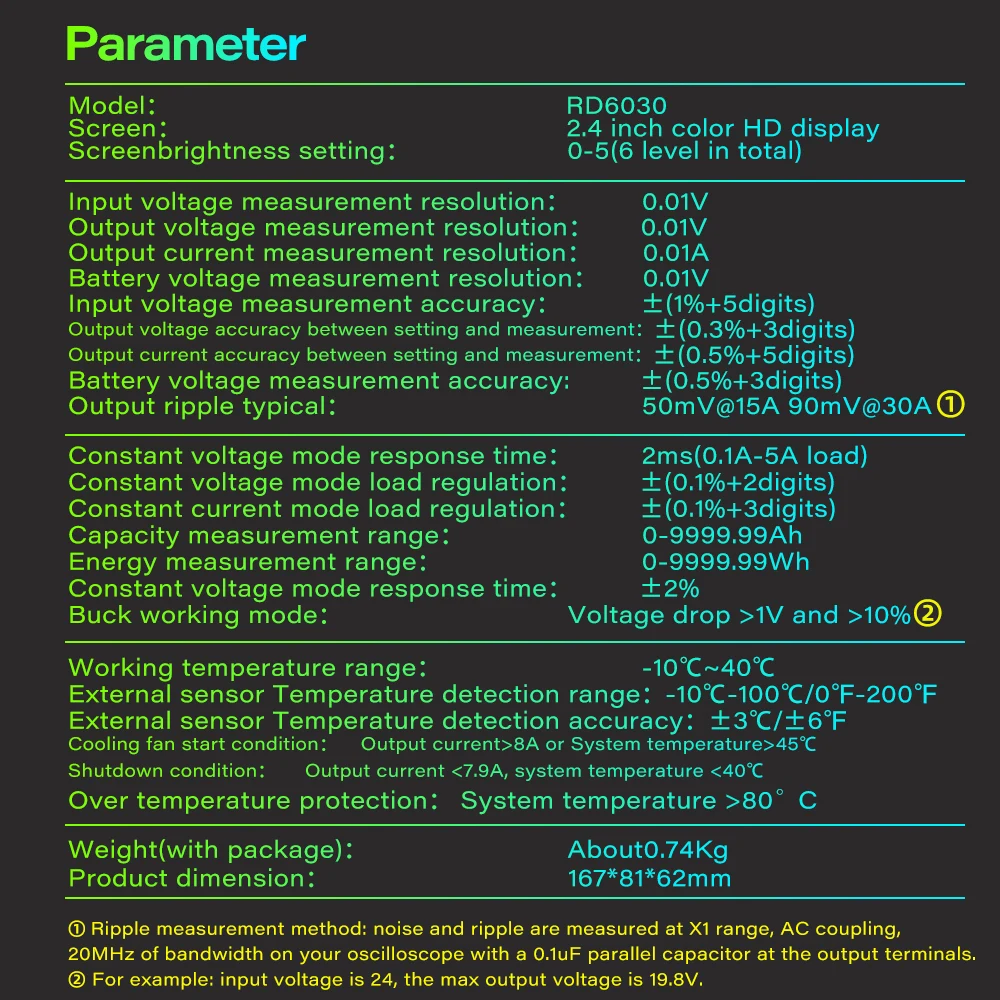

Specifications

Attribute	Value
Name	Power Source
Material	metal
Model	RD6030-W
Input voltage ranges	7-70.00V
Output voltage ranges	0-60.00V
Output current ranges	0-30.00A
Output power ranges	0-1800W

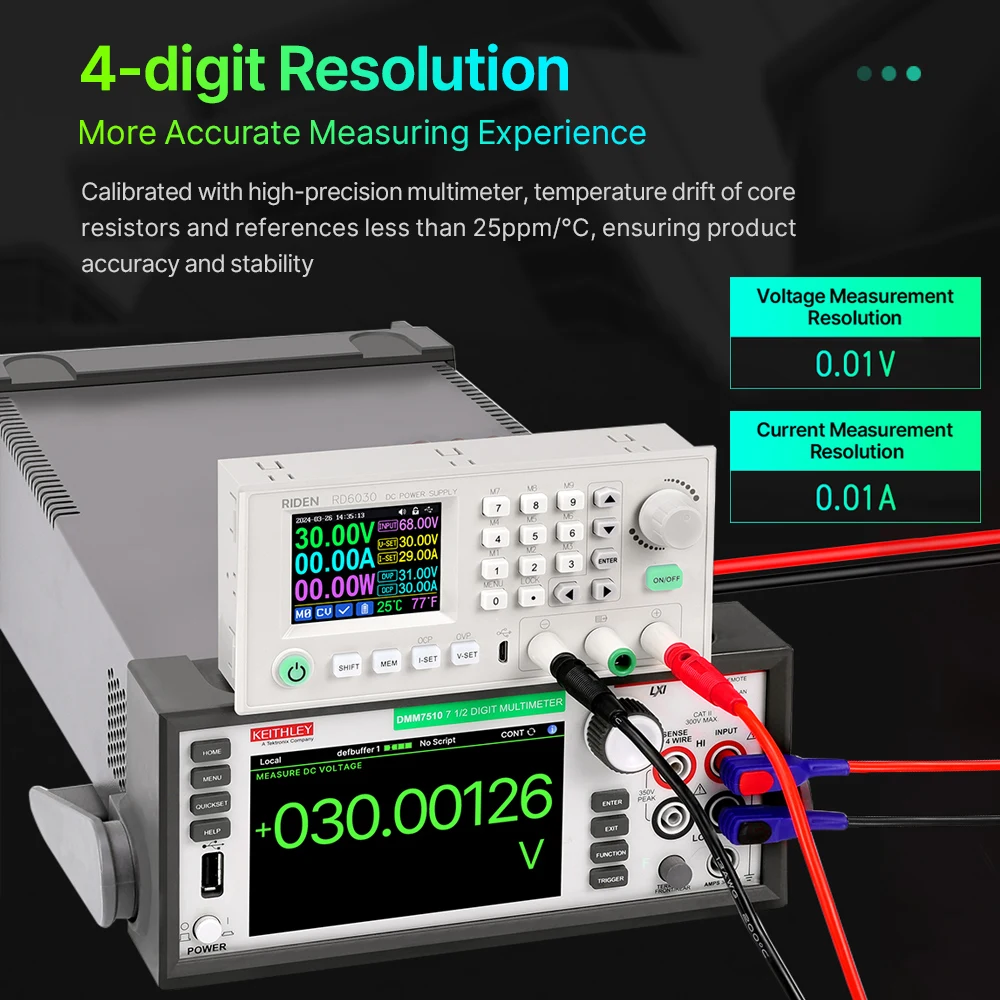

Input voltage measurement resolution	0.01V
Output voltage resolution	0.01V
Output current	0.01A
Battery voltage resolution	0.01V
Input voltage measurement accuracy	±(1%+5 digits)
Output voltage accuracy	±(0.3%+3digits)
Output current accuracy	±(0.5%+5digits)
Battery voltage measurement accuracy	±(0.5%+3 digits)
Default cutoff current value when charging	100mA
Output ripple typical	50mV@15A, 90mV@30A VPP
Working temperature ranges	-10℃~40℃
External sensor Temperature detection ranges	-10℃~100
External sensor Temperature detection accuracy	±3℃/±6℉
Constant voltage mode response time	2ms（0.1A-5A Load）
Constant voltage mode load regulation	±(0.1%+2 digits)
Constant current mode load regulation	±(0.1%+3 digits)
Capacity measurement ranges	0-9999.99Ah
Energy measurement ranges	0-9999.99Wh
Capacity and energy statistical error	±2％
Buckworking mode	（input voltage÷1.1）-1
Screen brightness setting	0-5(6 level in total)

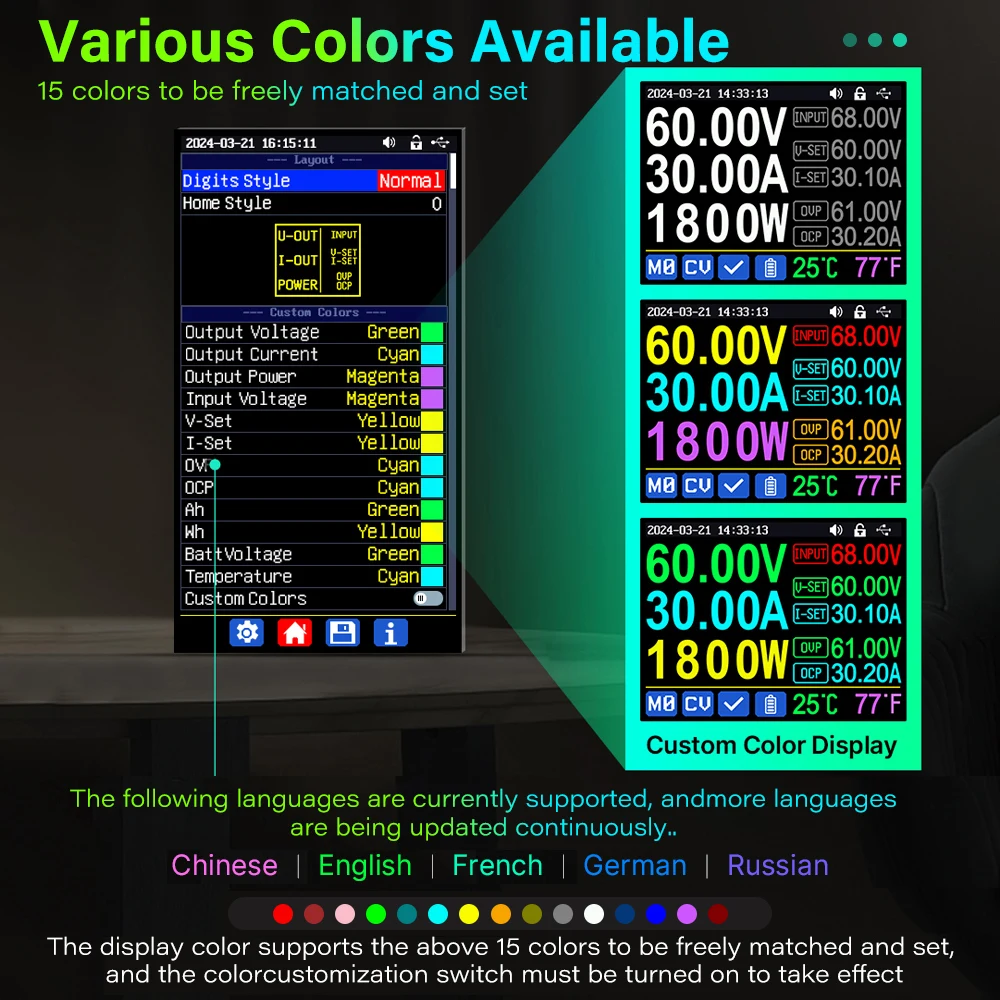

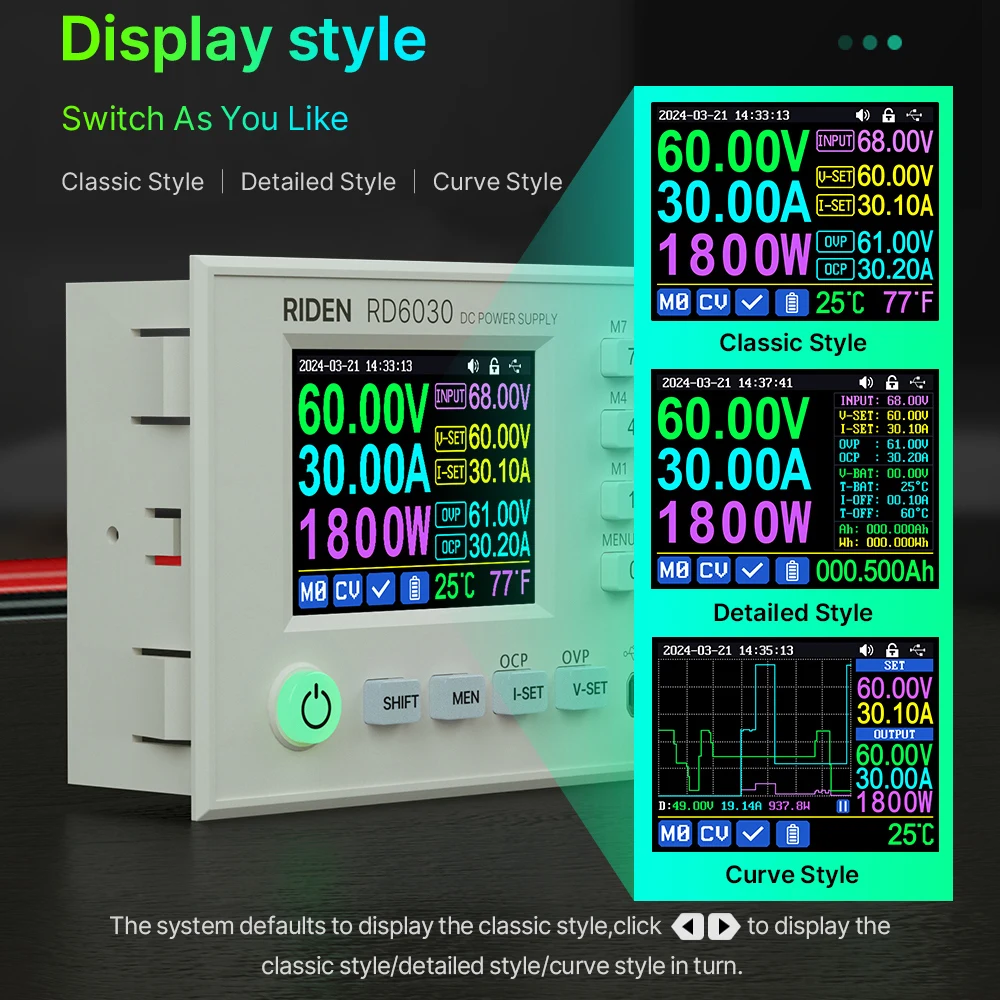

Screen	2.4inch color LCD display

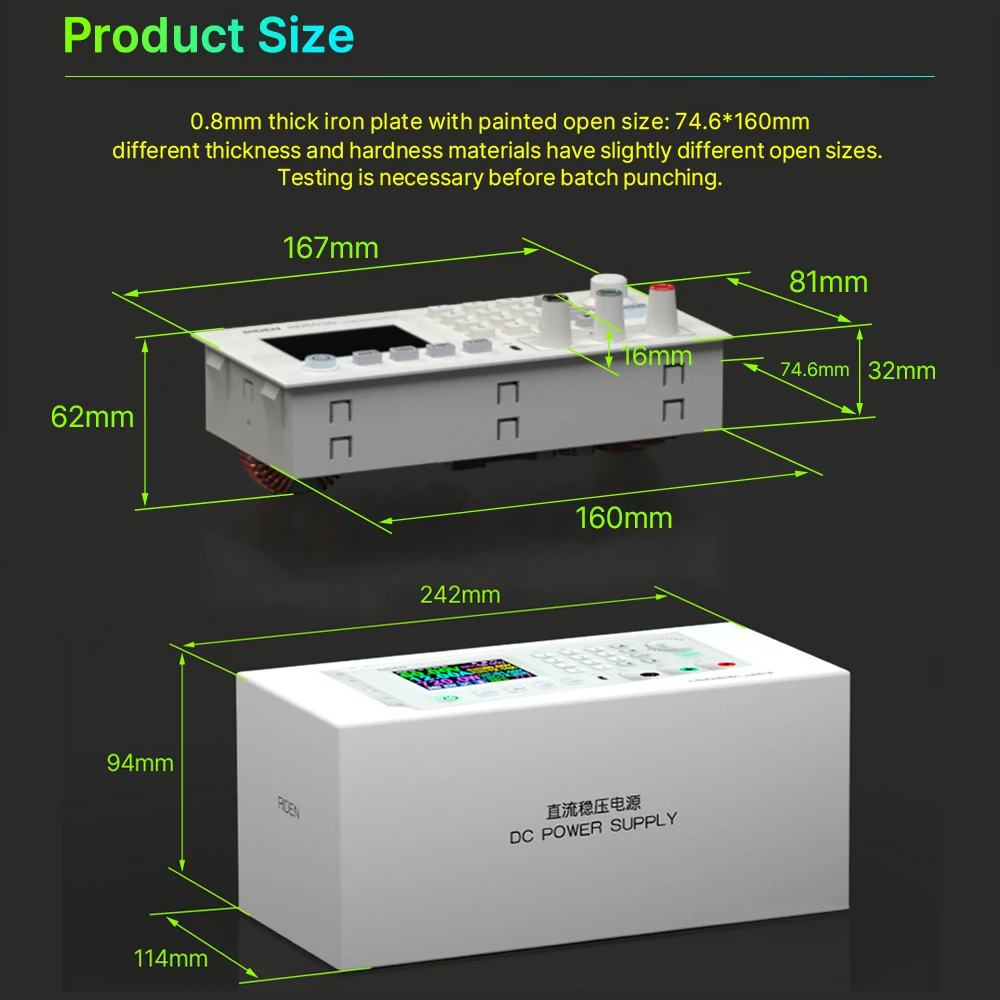

Item size	167 * 81 * 69mm / 6.57 * 3.19 * 2.72in
Package size	110 * 240 * 90mm / 4.33 * 9.45 * 3.54in
Package weight	736g / 1.62lb

Package includes

• 1 * Power Source

Notes

Images are for illustration purposes. Please check the specifications before ordering.
