ETC-100+ Thermoregulator Temperature Controller 220V
599.00 NOK
Product overview ETC-100+ Thermoregulator Temperature Controller Microcomputer Refrigerator Thermostat Regulator Heating Temp Control 220V Key features 1.T...
Product overview
ETC-100+ Thermoregulator Temperature Controller Microcomputer Refrigerator Thermostat Regulator Heating Temp Control 220V
Key features
- 1.Temperature measurement and control
- 2.Temperature calibration
- 3.Start-up delay protection
- 4.Input password to adjust parameter

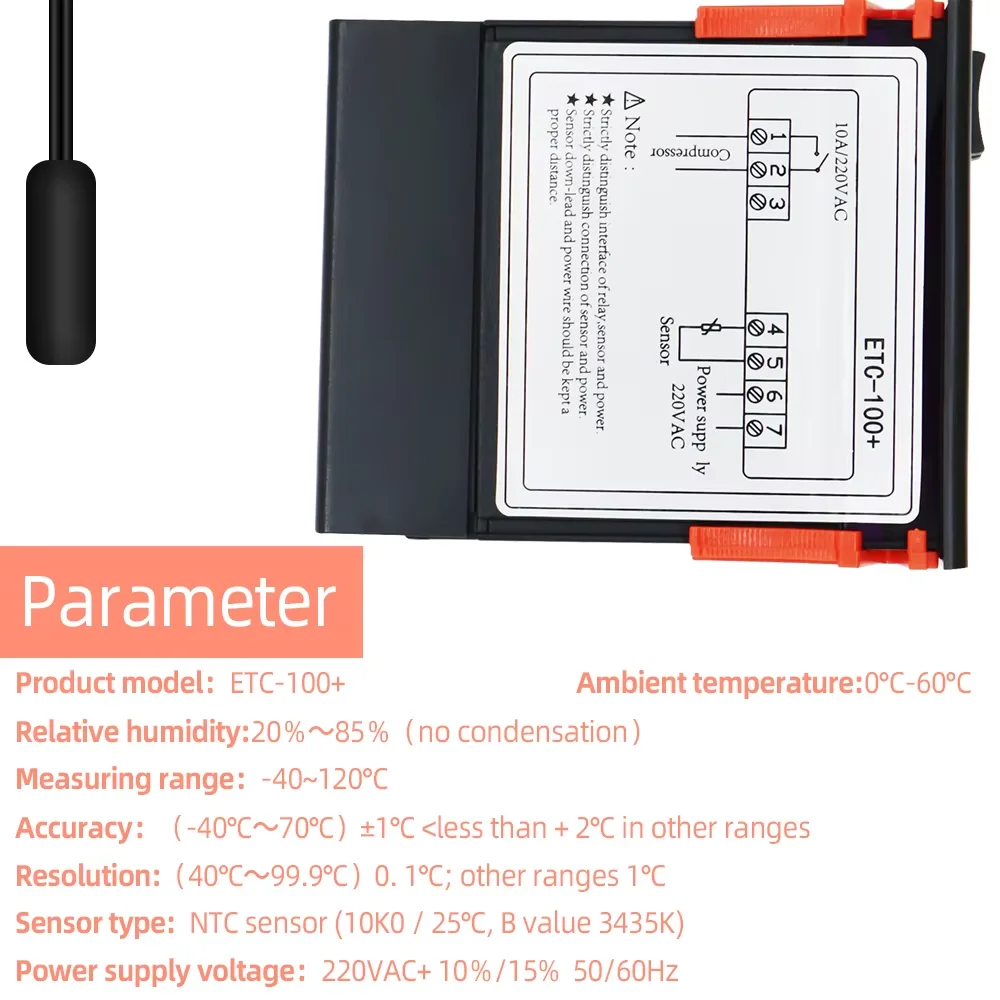

Specifications
| Attribute | Value |
|---|---|
| Item Type | Temperature Controller |
| Measuring and Controlling Temperature Range | -40-120°C |
| Resolution | 0.1 °C at (-40°C--99.9°C);1°C in other range |
| Accuracy | ±1 °C at (-40°C--70°C);less thsn ±2°C at other range |
| Power Supply Voltage | 220VAC ± 10%; 50Hz / 60Hz |
| Temperature controlling range | -40°C--120°C |
| Relay contact capacity | Refrigeration:10A/220VAC,the max load it can driving is 0.5HP/220VAC |
| Sensor type | NTC sensor(10KΩ/25℃,B value 3435K) |
| Ambient temperature | 0℃~60℃ |
| Storage temperature | -30℃~75℃ |
| Relative humidity | 20%~85%(No condensate) |
| Front panel size | 75(L.)×34.5(W)mm |
| Mounting size | 71(L)×29(W)mm |
| Sensor length | 2.0m(include the probe) |
Package includes
Notes
Images are for illustration purposes. Please check the specifications before ordering.
Images
- Default - 599.00 NOK
