RD Digital Adjustable Lab Bench Power Supply
2999.00 NOK
Product overview RD Digital Adjustable Lab Bench Power Supply for Repair Completed Set Key features Digital Adjustable Lab Bench Power Supply Specification...
Product overview
RD Digital Adjustable Lab Bench Power Supply for Repair Completed Set
Key features
- Digital Adjustable
- Lab Bench
- Power Supply

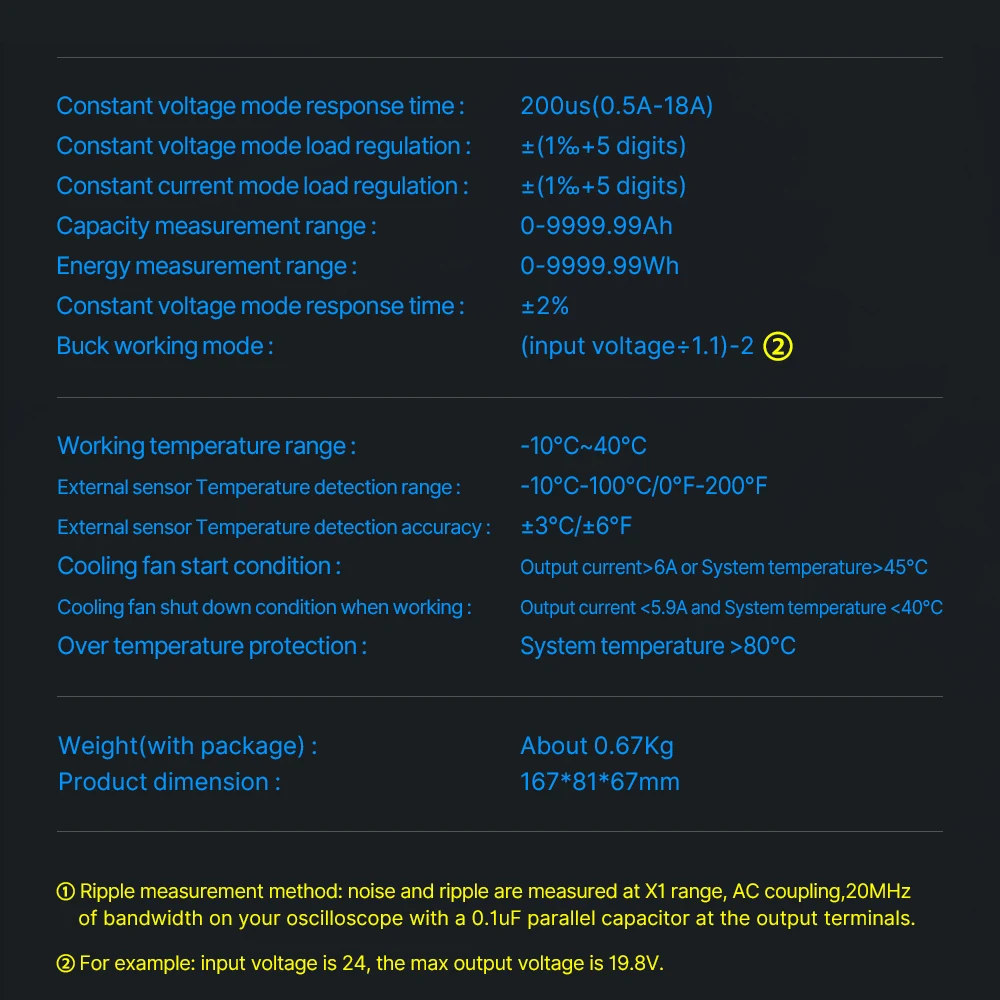

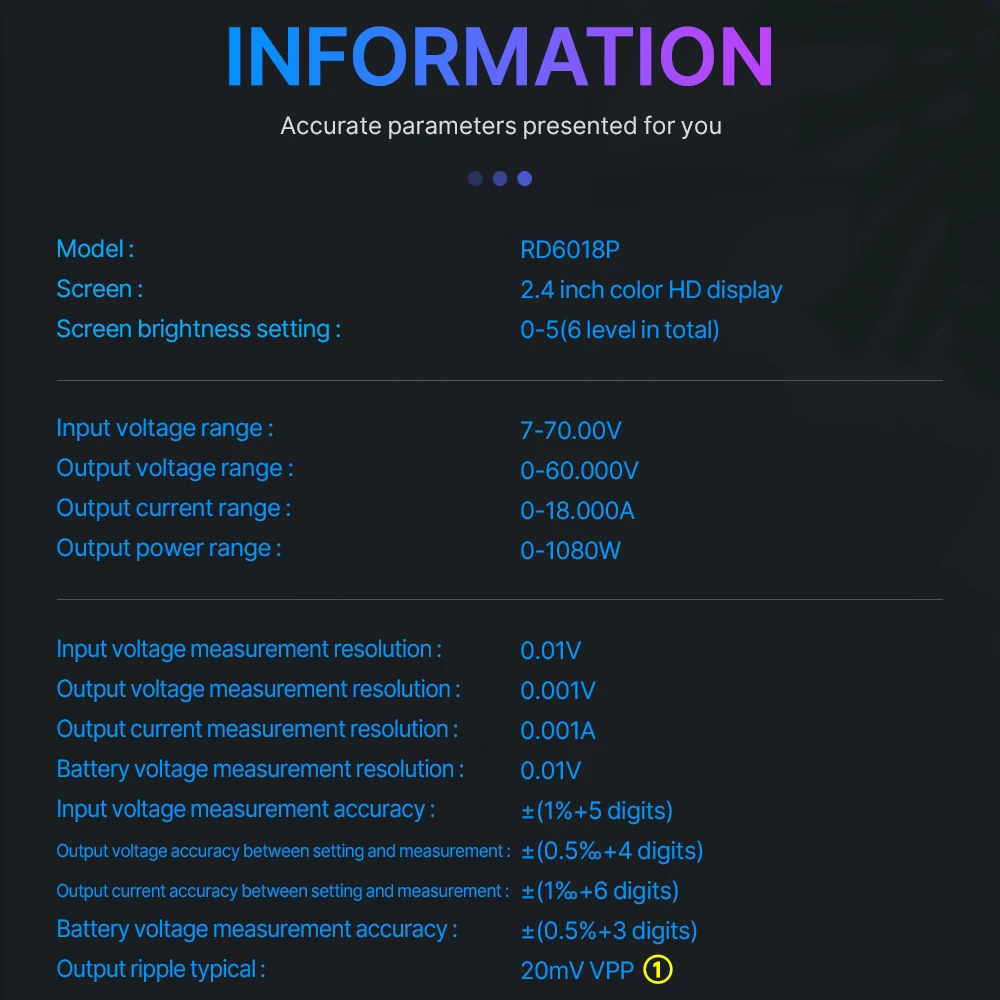

Specifications
| Attribute | Value |
|---|---|
| Model | RD6018P |

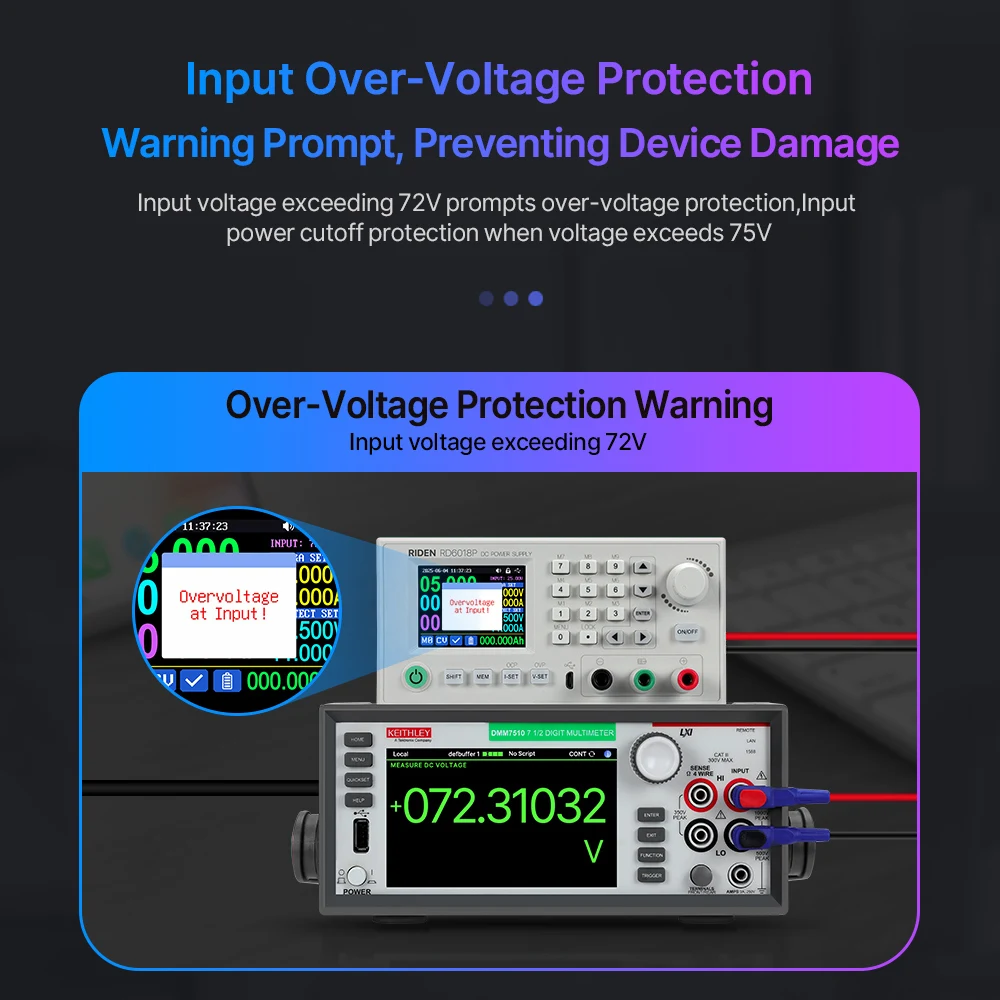

| Input voltage range | 7-70.000V |
| Output voltage range | 0-60.000V |

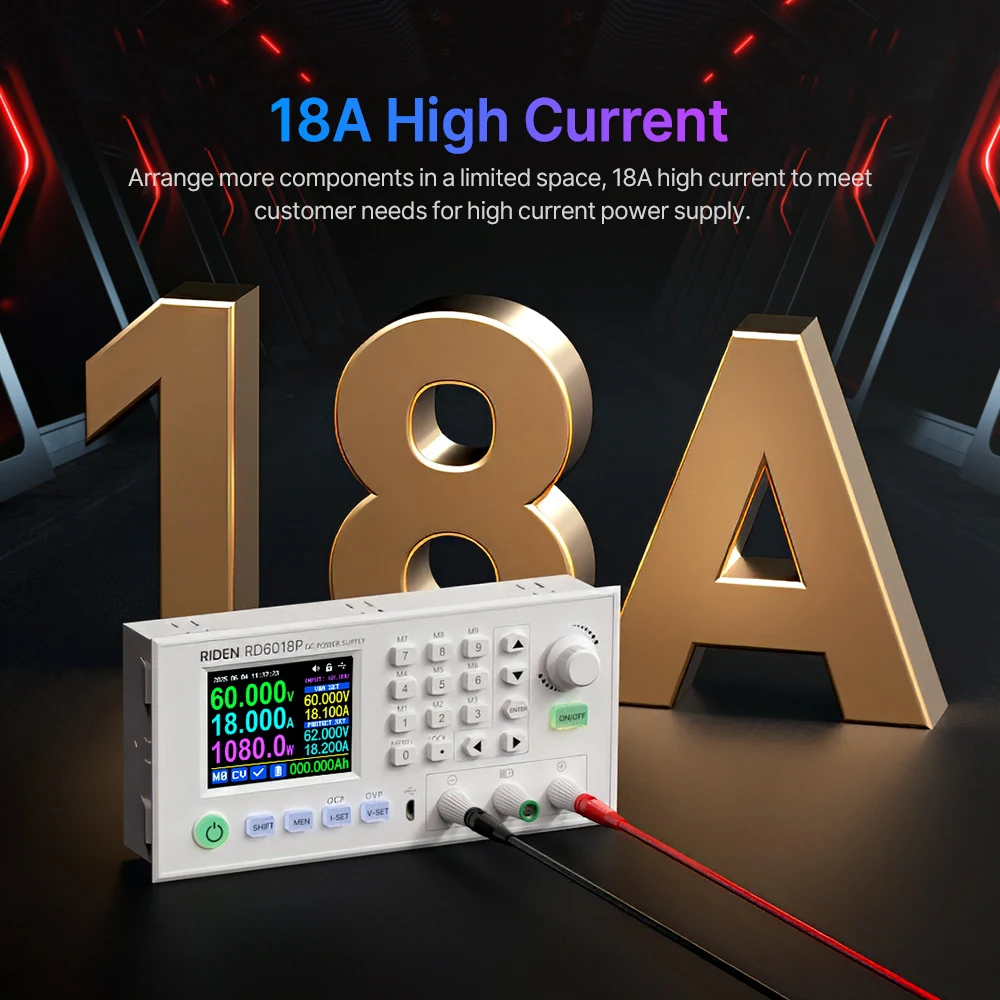

| Output current range | 0-18.000A |
| Output power range | 0-1080W |

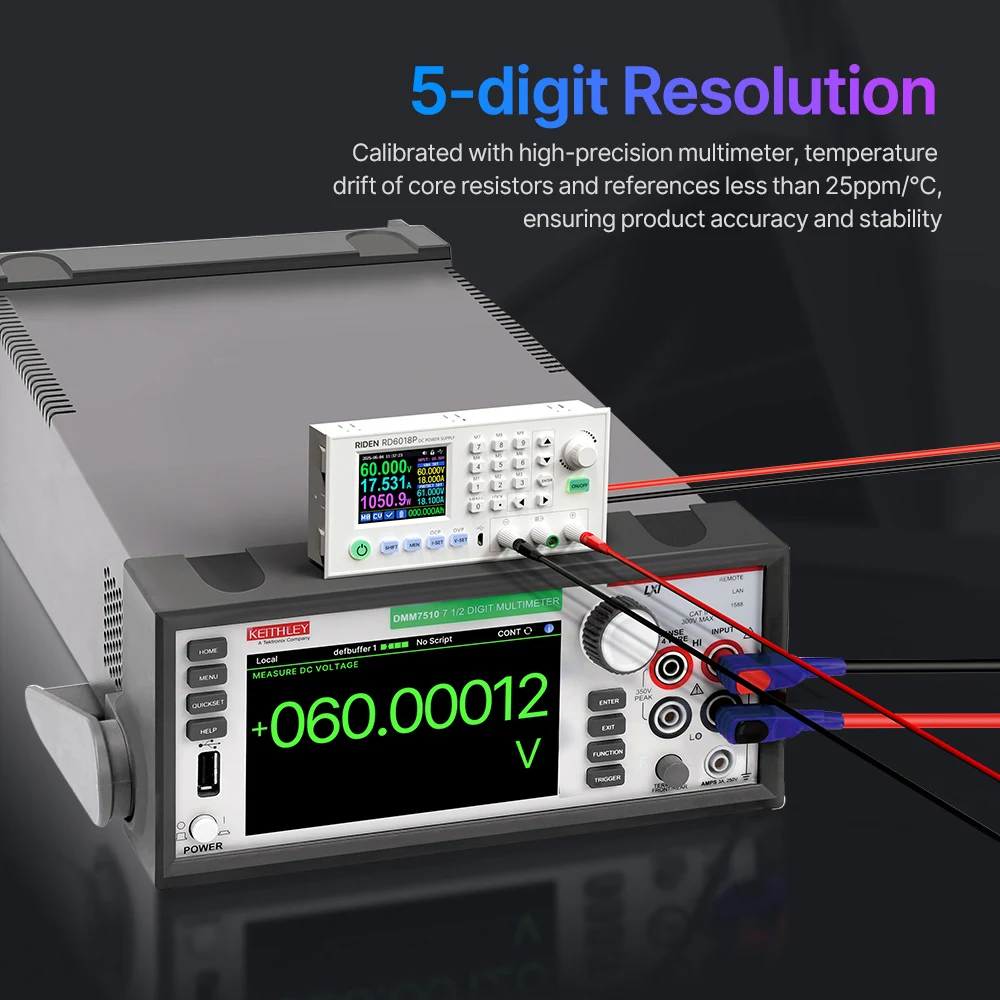

| Output voltage resolution | 1mV |
| Output current | 1mA |
| Default cutoff current value when charging | 10mA |

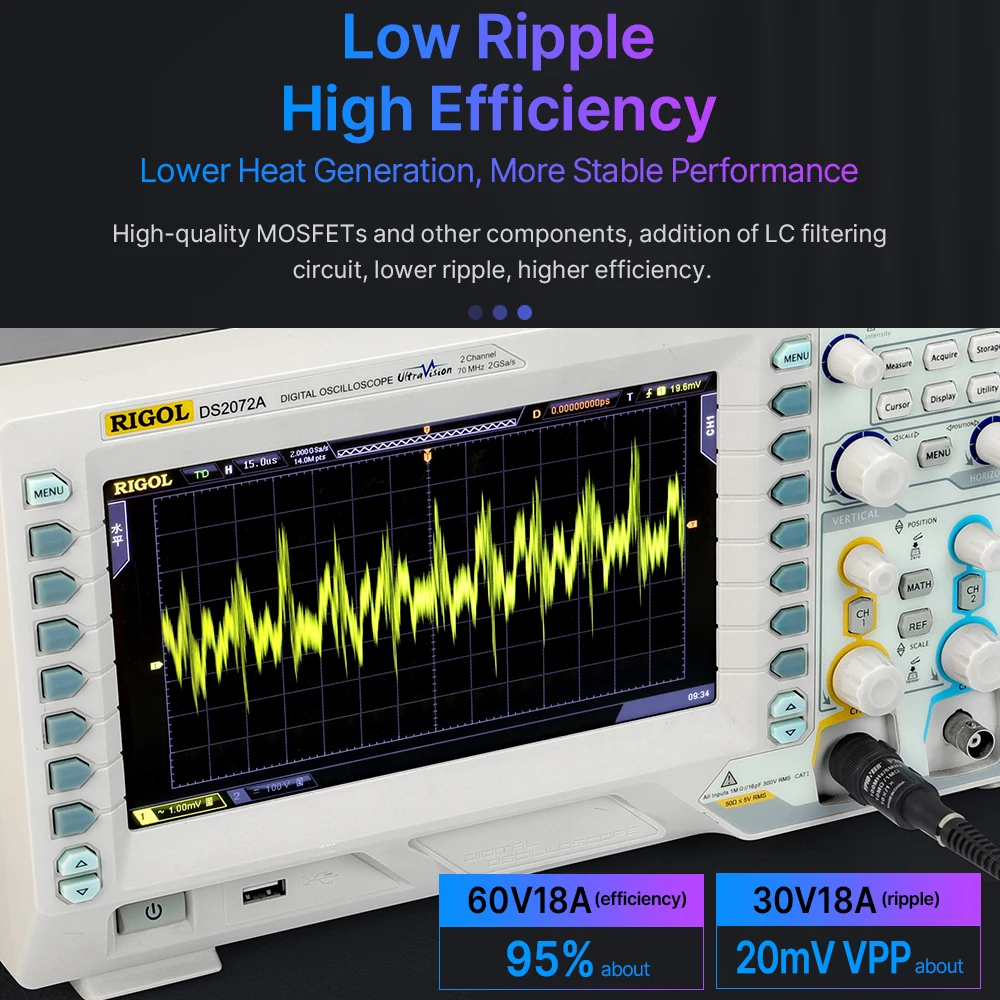

| Output ripple typical | 20mV |
| Working temperature range | -10℃~40℃ |
| External sensor Temperature detection range | -10℃~100℃ |
| Constant voltage moderesponse time | 22uS |
| Constant voltage mode load regulation | ±(0.1%+0.2mV) |
| Constant current mode load regulation | 0.1%+3mA |
| Capacity measurement range | 0-9999.99Ah |
| Energy measurement range | 0-9999.99Wh |
| Capacity and energy statistical error | ±2％ |
| Screen brightness setting | 0-5(6 level in total) |

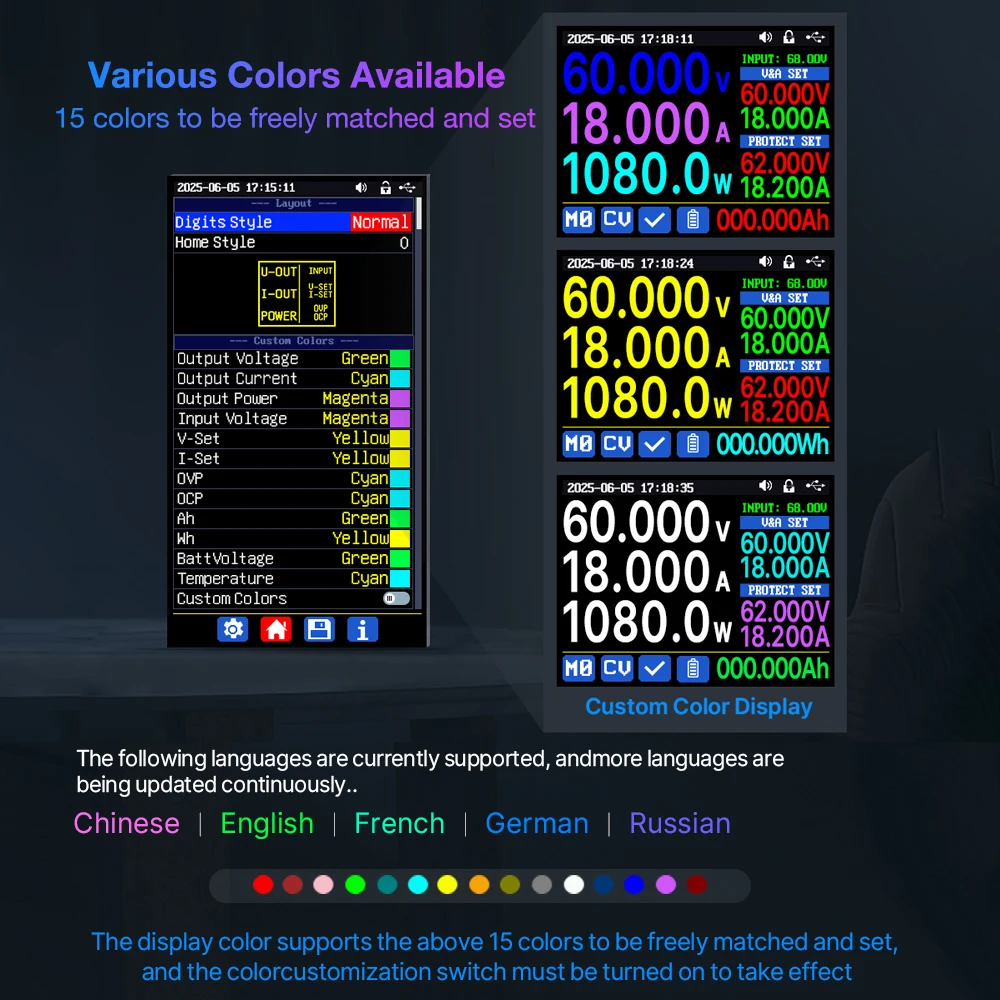

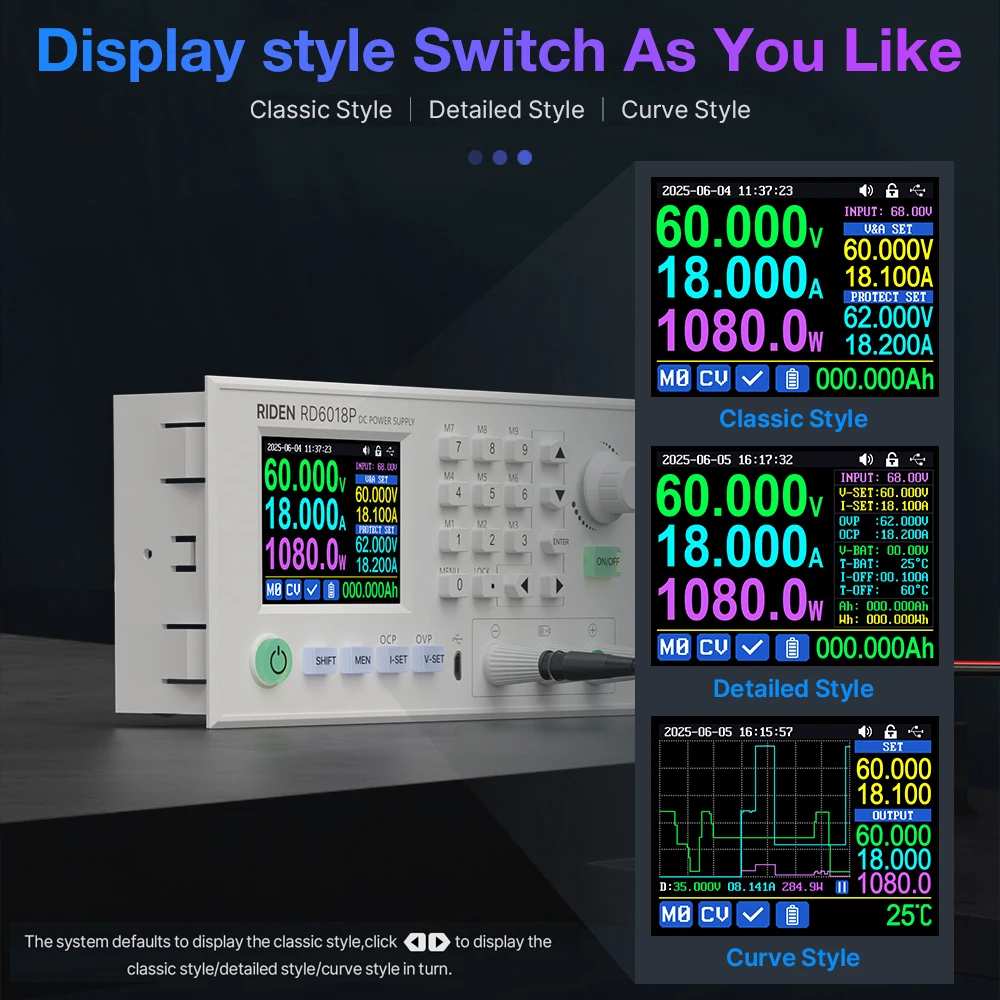

| Screen | 2.4 inch color HD display |
| Weight(with package) | About 0.74kg |

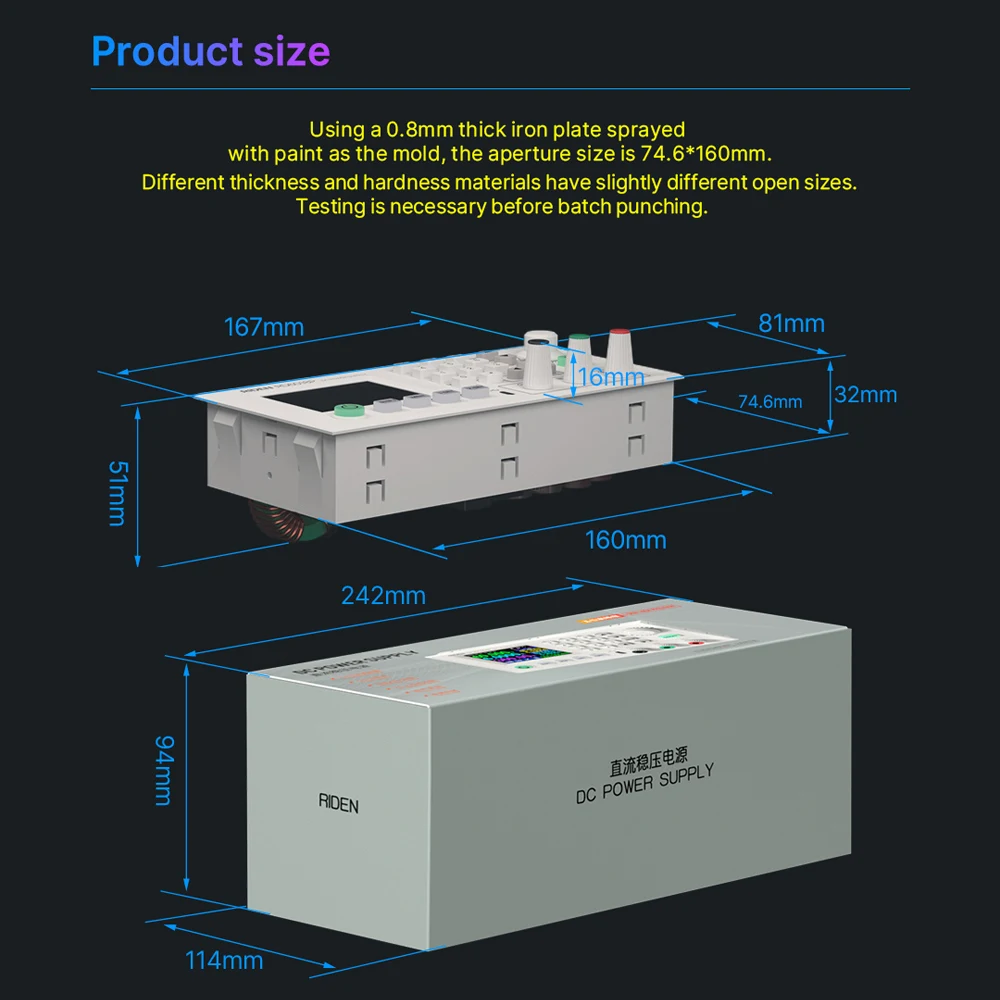

| Product dimension | 167*81*67mm |
Package includes
- Instruction

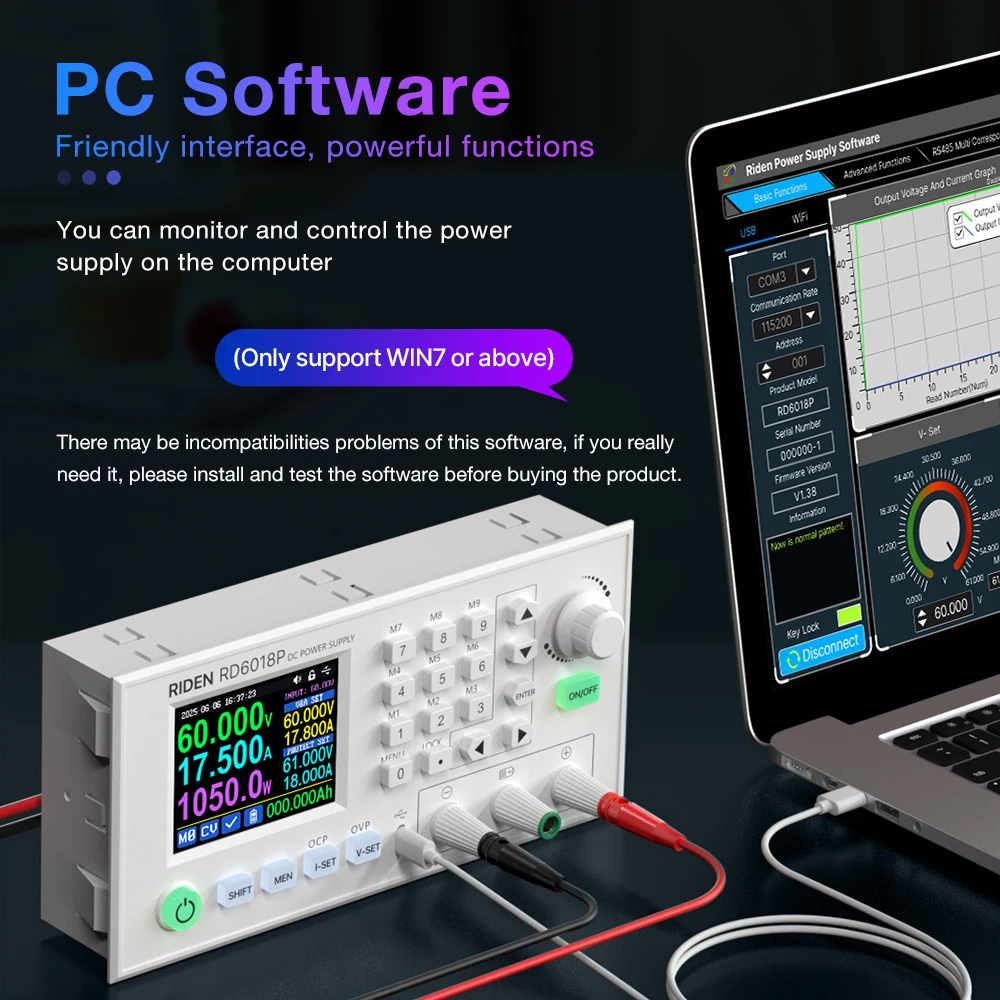

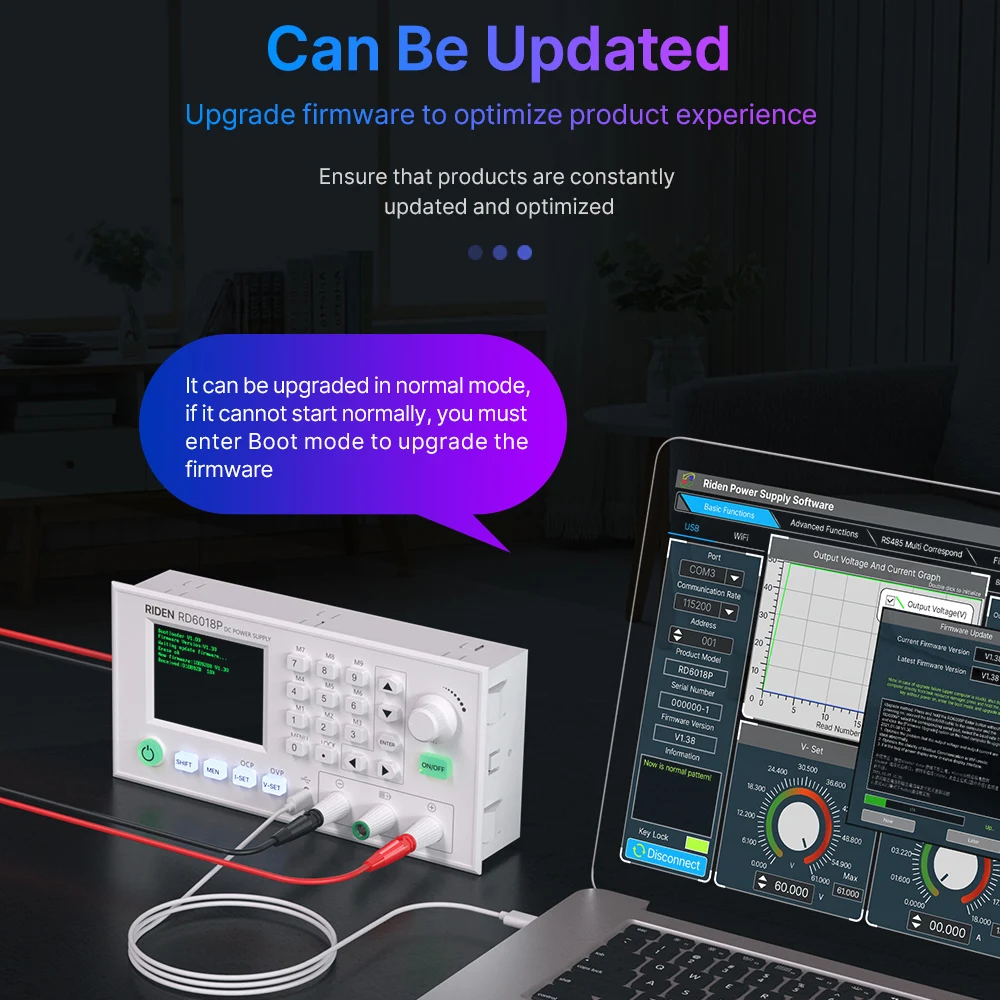

- PC software

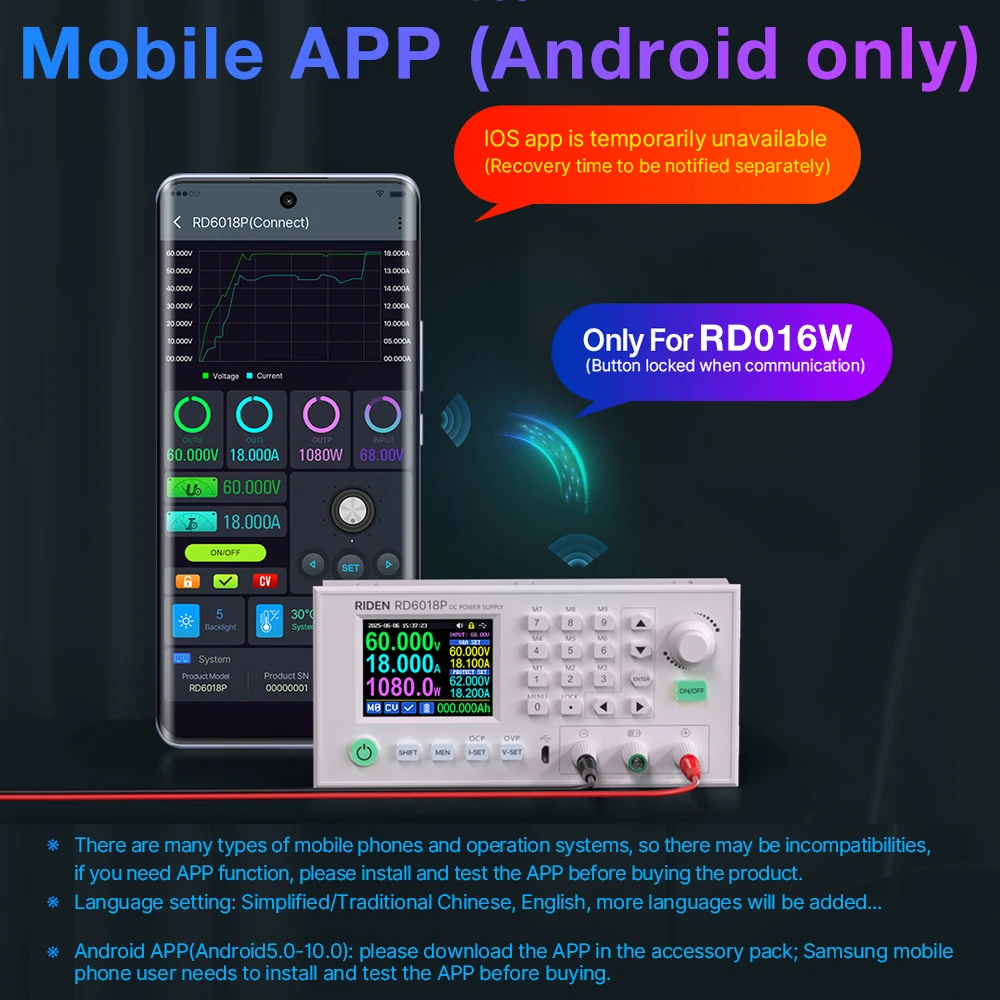

- APP
Notes
Images are for illustration purposes. Please check the specifications before ordering.
Images

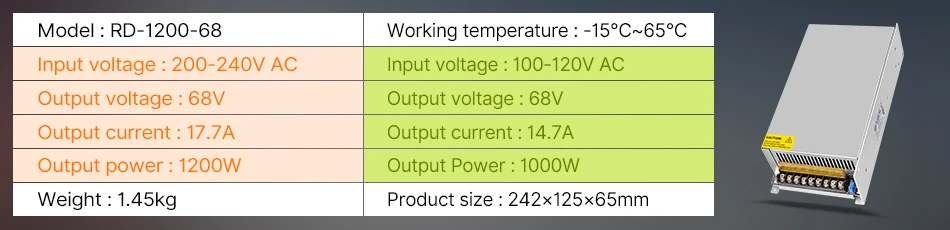

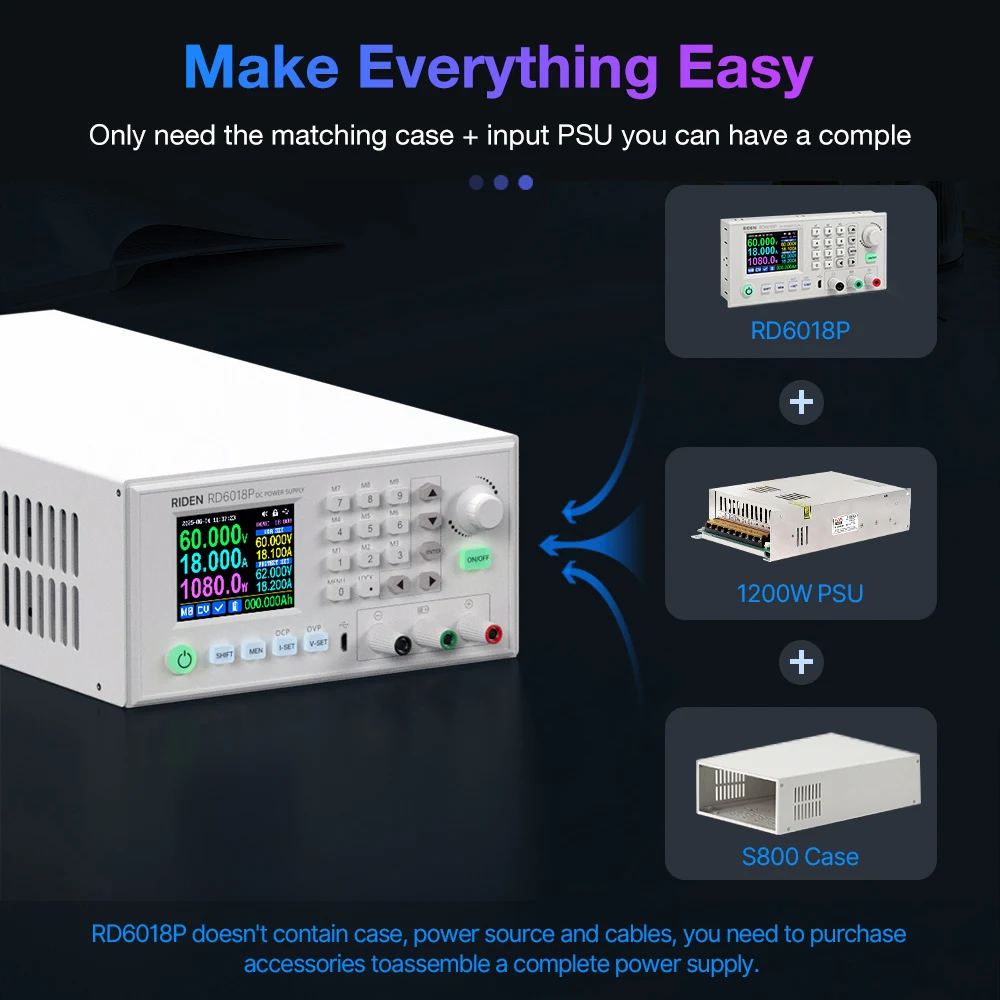

- Color:1200W-68V PSU Only - 2999.00 NOK
- Color:RD6018P - 3499.00 NOK
- Color:RD6018P-W - 3499.00 NOK
- Color:RD6018P S800 - 3999.00 NOK
- Color:RD6018P-W S800 - 3999.00 NOK
