REX-C100/C700 Relay SSR Output Digital PID Temperature Controller
449.00 NOK
Product overview REX-C100/C700 Relay SSR Output Industrial Thermostat Digital PID Temperature Controller Universal Input Output Instrument Key features Ran...
Product overview
REX-C100/C700 Relay SSR Output Industrial Thermostat Digital PID Temperature Controller Universal Input Output Instrument
Key features
- Range: 0 to 400 °c K
- Output: SSR
- Accuracy: ±0.5%FS
- Cold-end compensation tolerance: ±2C can be modified by software in 0~50C
- Resolution: 14 bit
Specifications
| Attribute | Value |
|---|---|

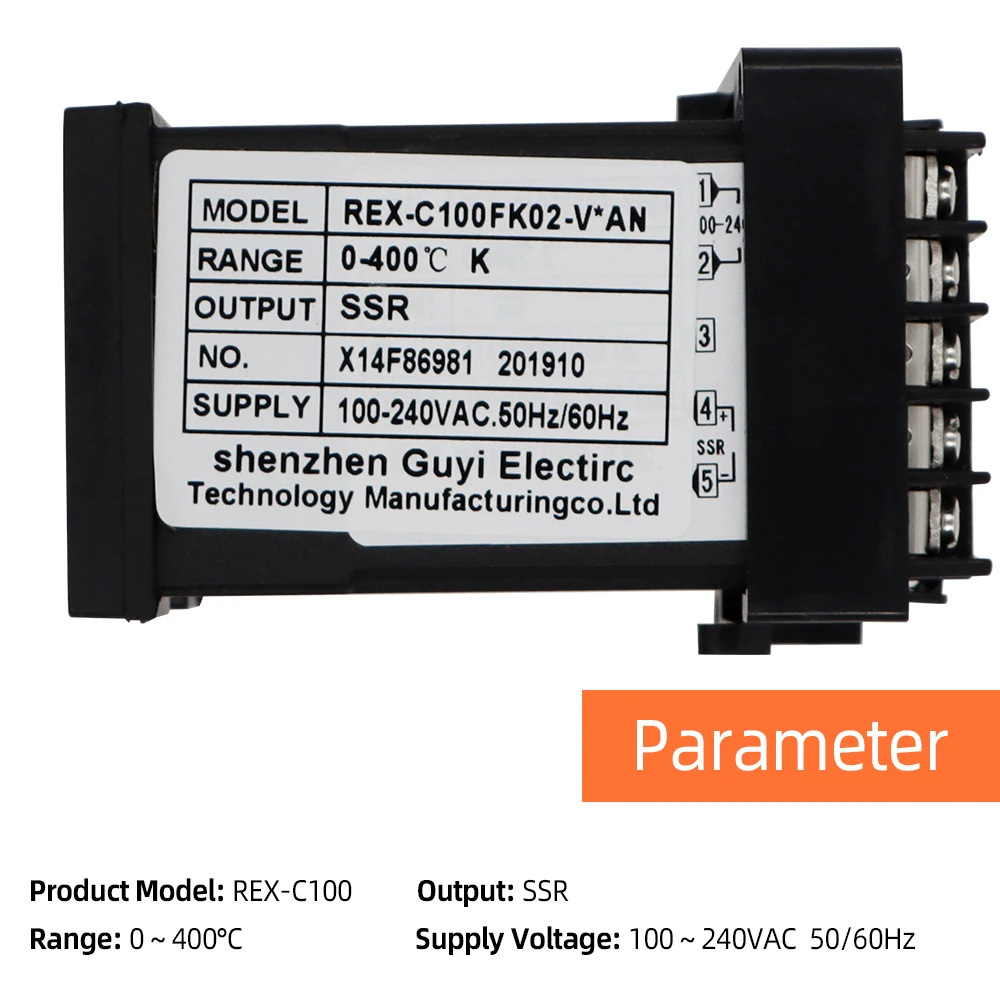

| Model | REX-C100FK02-V |
| Range | 0 to 400 °c K |
| Output | SSR |
| Measuring accuracy | ±0.5%FS |
| Cold-end compensation tolerance | ±2C can be modified by software in 0~50C |
| Resolution | 14 bit |
| Sampling cycle | 0.5 Sec |
| Insulation resistance | 1500V AC/min |
| Power Consumption | 10 VA |
| Service environment | 0~50℃, environment with no corrosive gas 30~85% RH |
| Dimensions | 48 x 48 x 110 (mm) ±0.2mm |

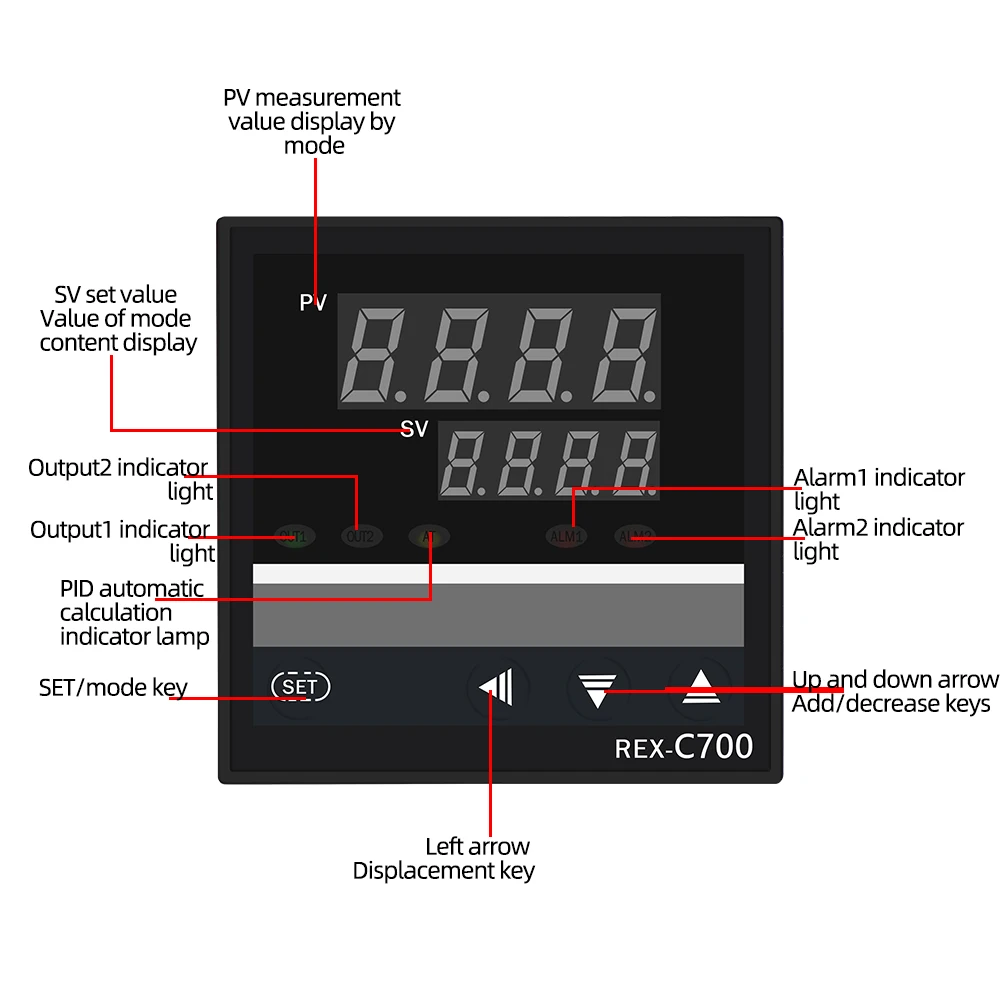

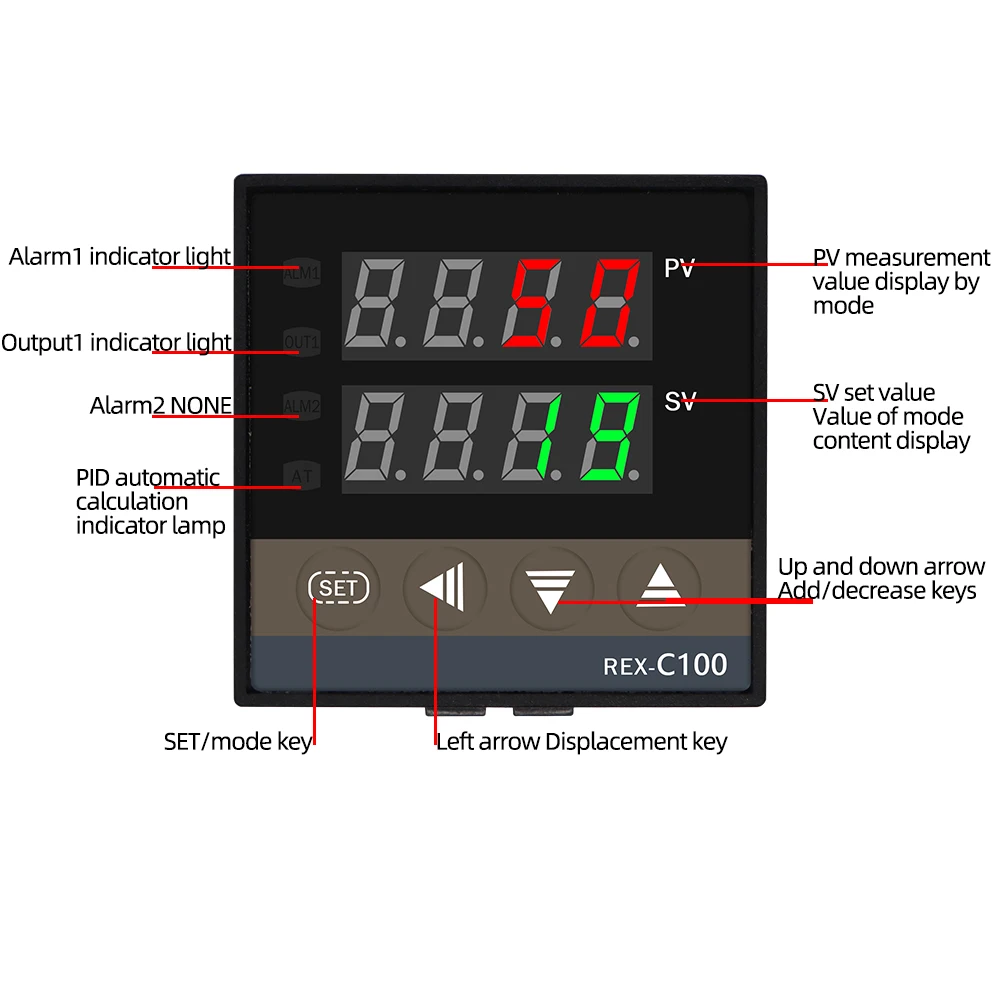

| Process value (PV), Setting value (SV) | Output, alarm and self-tuning can be indicated by: LED |
| PIN control | including ON/OFF, step-type PID and continuous PID |
| Relay output | contact capacity 250V AC 3A (resistive load) |
| Alarm function output | 1 way |
| Contact capacity of output | 250V AC 3A (resistive load) |
| Setting value (SV) | identical to measuring range (PV) |
| Proportional band (P) | 0~999 sec (ON/OFF control when set to 0) |
| Integral time (I) | 0~999 sec (No integral action when set to 0) |
| Derivative time (D) | 0~999 sec (No derivative action when set to 0) |
| Heat-reset proportional cycle | 1~100 sec |
Package includes
Notes
Images are for illustration purposes. Please check the specifications before ordering.
Images
- Color:REX-C100 SSR - 449.00 NOK
- Color:REX-C100 Relay - 599.00 NOK

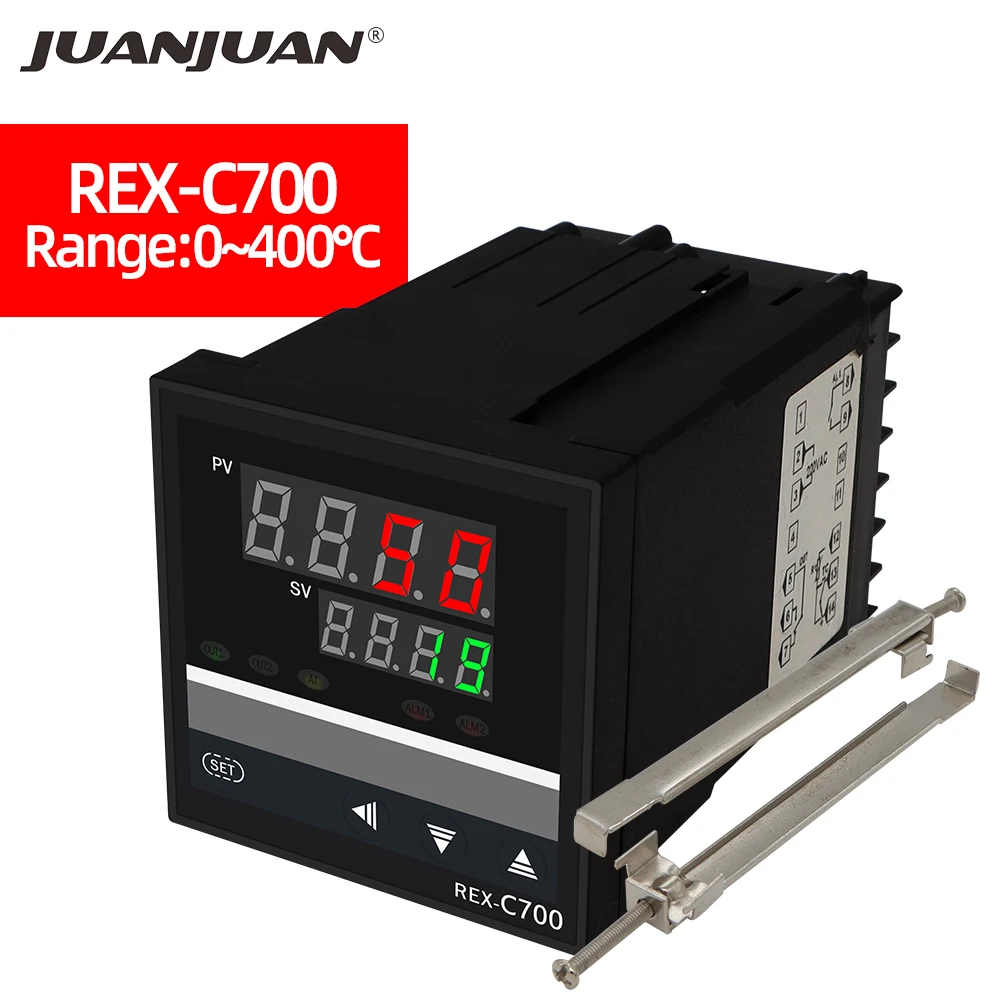

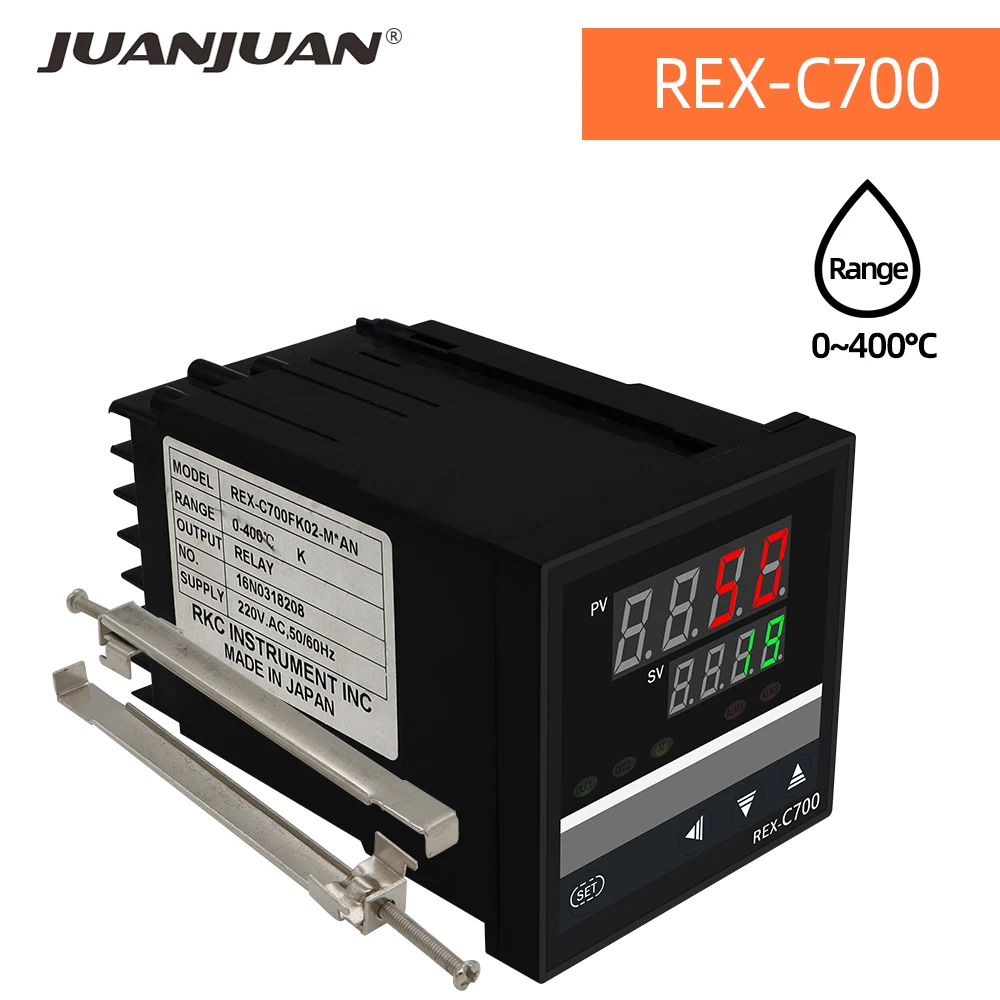

- Color:REX-C700 Relay - 599.00 NOK
